MS8606 - Rail-to-Rail Input and Output Amplifier

Download the MS8606 datasheet PDF (MS8605 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for rail-to-rail input and output amplifier.

Description

The MS8605 and MS8606 are single channel, dual channel rail-to-rail input and output and single power supply amplifiers respectively, which are featured by low offset voltage, low input noise and wide signal bandwidth.

The performances make it applicable to filter, integrator, photodiode amplifier.

Features

  • The operating temperature range of the MS8605 or MS8606 is -40°C to 125°C.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MS8605-Ruimeng.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MS8606
Manufacturer Ruimeng
File Size 1.00 MB
Description Rail-to-Rail Input and Output Amplifier
Datasheet download datasheet MS8606 Datasheet

📁 Similar Datasheet

  • MS860 - 8 Amp Schottky Barrier Rectifier (Micro Commercial Components)
  • MS8607-02BA01 - PHT Combination Sensor (TE)
  • MS80 - Surface Mount Si-Bridge-Rectifiers (Diotec Semiconductor)
  • MS8000 - Single axis analog accelerometer (SAFRAN)
  • MS8001 - GaAs Schottky Diodes (Microsemi)
  • MS8002 - GaAs Schottky Diodes (Microsemi)
  • MS8003 - GaAs Schottky Diodes (Microsemi)
  • MS8004 - GaAs Schottky Diodes (Microsemi)
  • MS808C06 - Schottky Barrier Diode (Fuji Electric)
  • MS809 - Schottky Diodes (Infineon Technologies)
Other Datasheets by Ruimeng
  • MS8601 - Wideband Operational Amplifier
  • MS8602 - Wideband Operational Amplifier
  • MS8604 - Wideband Operational Amplifier
  • MS8605 - Rail-to-Rail Input and Output Amplifier
  • MS8608 - Rail-to-rail input/output operational amplifier
  • MS8608T - Rail-to-rail input/output operational amplifier
  • MS8613 - Rail-to-Rail Input and Output Operational Amplifier
  • MS8617 - Rail-to-Rail Input and Output Operational Amplifier

Full PDF Text Transcription

Click to expand full text

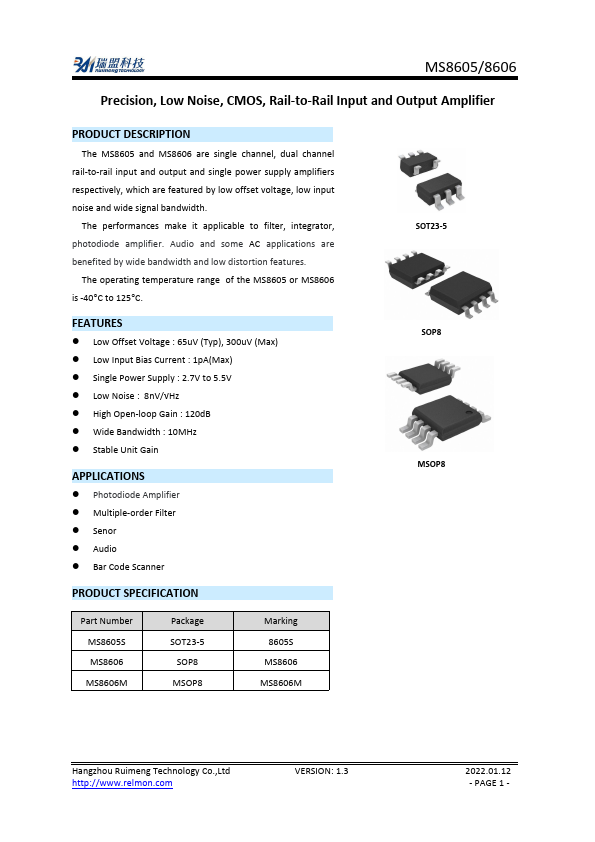

MS8605/8606 Precision, Low Noise, CMOS, Rail-to-Rail Input and Output Amplifier PRODUCT DESCRIPTION The MS8605 and MS8606 are single channel, dual channel rail-to-rail input and output and single power supply amplifiers respectively, which are featured by low offset voltage, low input noise and wide signal bandwidth. The performances make it applicable to filter, integrator, photodiode amplifier. Audio and some AC applications are benefited by wide bandwidth and low distortion features. The operating temperature range of the MS8605 or MS8606 is -40°C to 125°C. FEATURES  Low Offset Voltage : 65uV (Typ), 300uV (Max)  Low Input Bias Current : 1pA(Max)  Single Power Supply : 2.7V to 5.
