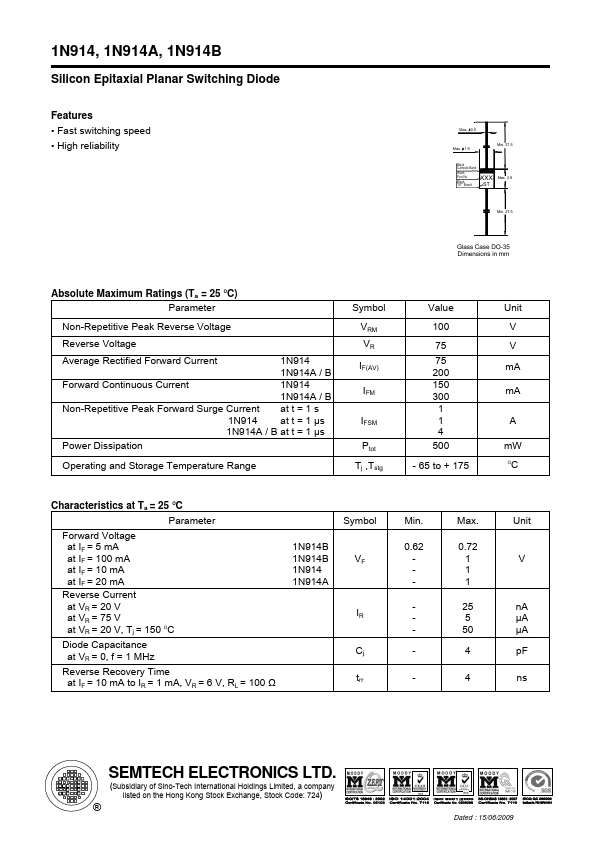

1N914B
1N914B is Silicon Epitaxial Planar Switching Diode manufactured by SEMTECH.
- Part of the 1N914 comparator family.
- Part of the 1N914 comparator family.
Features
- Fast switching speed
- High reliability
Max. 0.5
Max. 1.9
Min. 27.5
Black Cathode Band
Black Part No.
Black "ST" Brand
Max. 3.9
Min. 27.5
Glass Case DO-35 Dimensions in mm
Absolute Maximum Ratings (Ta = 25 OC) Parameter
Symbol
Value
Unit
Non-Repetitive Peak Reverse Voltage
Reverse Voltage
Average Rectified Forward Current
1N914 1N914A / B
IF(AV)
75 200 m A
Forward Continuous Current
1N914 1N914A / B
150 300 m A
Non-Repetitive Peak Forward Surge Current at t = 1 s
1N914 at t = 1 µs
IFSM
1N914A / B at t = 1 µs
Power...
