Datasheet Details
| Part number | LS207 |
|---|---|
| Manufacturer | SGS-Ates |
| File Size | 367.46 KB |
| Description | FREQUENCY COMPENSATED OPERATIONAL AMPLIFIERS |
| Datasheet | LS207 LS207_SGS Datasheet (PDF) |
|
|

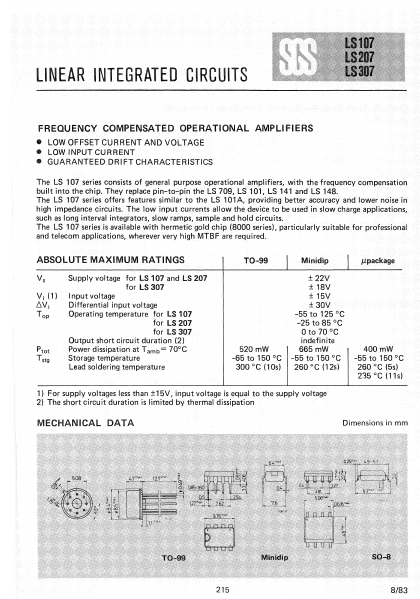

Overview: LINEAR INTEGRATED CIRCUITS FREQUENCY PENSATED OPERATIONAL AMPLIFIERS • LOW OFFSET CURRENT AND VOLTAGE • LOW INPUT CURRENT • GUARANTEED DRIFT CHARACTERISTICS The LS 107 series consists of general purpose operational amplifiers, with the frequency pensation built into the chip. They replace pin-to-pin the LS 709, LS 101, LS 141 and LS 148.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | LS207 |
|---|---|
| Manufacturer | SGS-Ates |
| File Size | 367.46 KB |
| Description | FREQUENCY COMPENSATED OPERATIONAL AMPLIFIERS |
| Datasheet | LS207 LS207_SGS Datasheet (PDF) |
|
|
|
