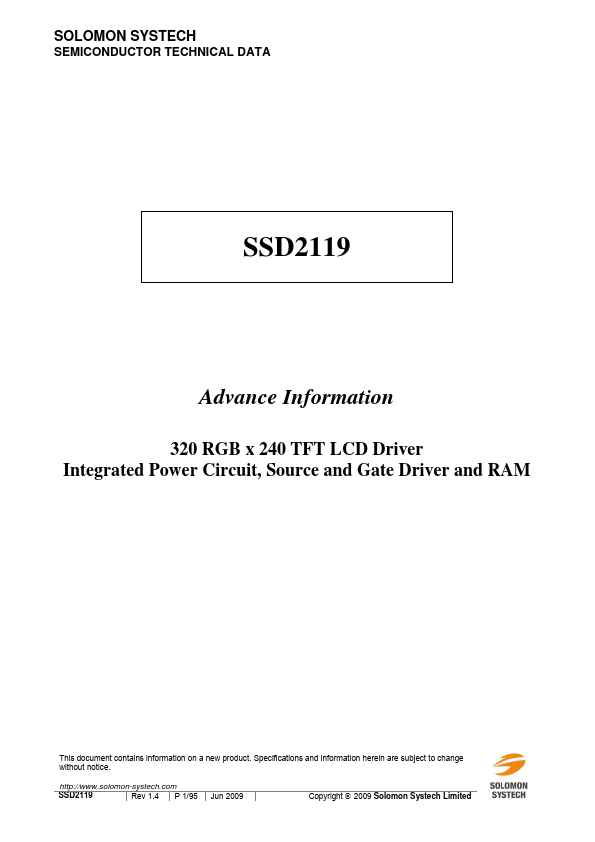

SSD2119 Description

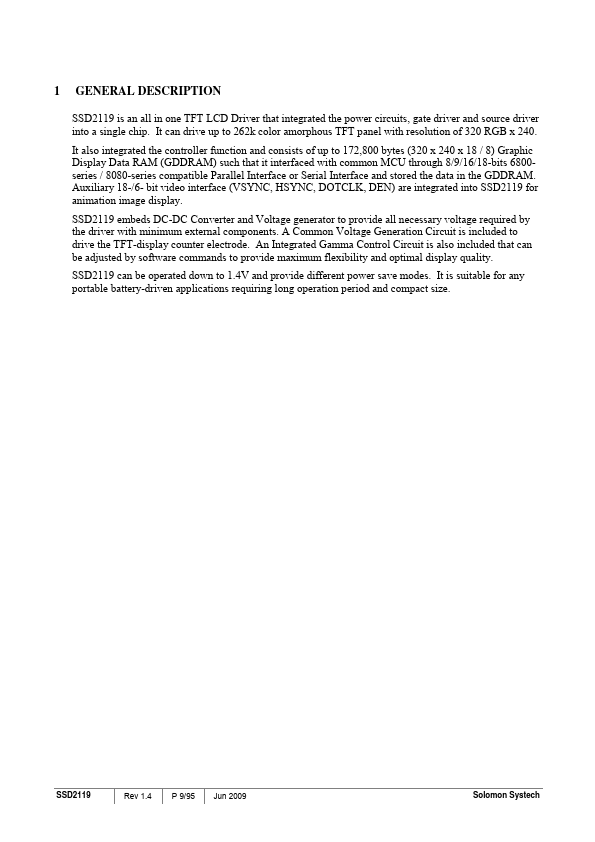

SSD2119 is an all in one TFT LCD Driver that integrated the power circuits, gate driver and source driver into a single chip. It can drive up to 262k color amorphous TFT panel with resolution of 320 RGB x 240. Auxiliary 18-/6- bit video interface (VSYNC, HSYNC, DOTCLK, DEN) are integrated into SSD2119 for animation image display.

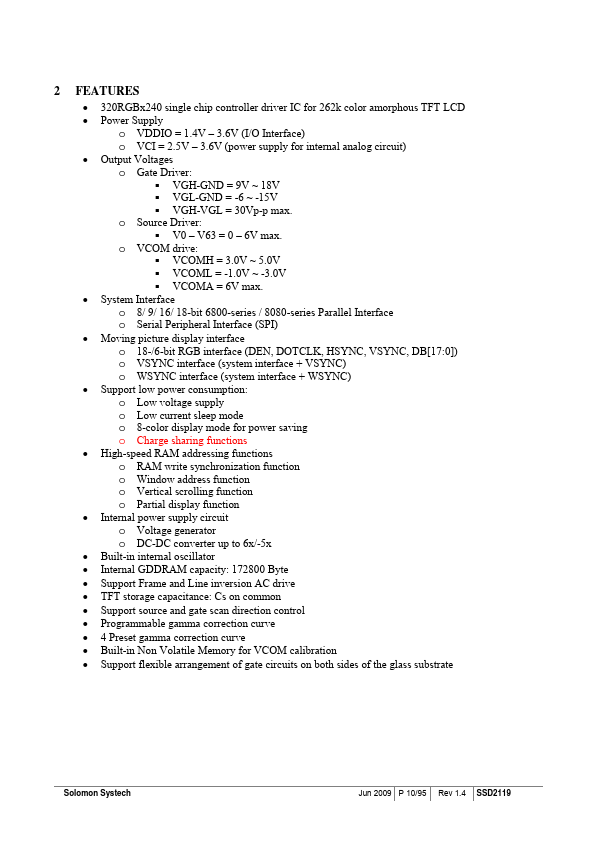

SSD2119 Key Features
- 320RGBx240 single chip controller driver IC for 262k color amorphous TFT LCD
- Power Supply
- 3.6V (I/O Interface) o VCI = 2.5V
- 3.6V (power supply for internal analog circuit)
- Output Voltages o Gate Driver
- VGH-GND = 9V ~ 18V
- VGL-GND = -6 ~ -15V
- VGH-VGL = 30Vp-p max. o Source Driver
- V63 = 0
- 6V max. o V drive
SSD2119 Applications
- 320RGBx240 single chip controller driver IC for 262k color amorphous TFT LCD
