Datasheet Details
| Part number | SSD2119M1 |
|---|---|
| Manufacturer | SOLOMON SYSTECH |
| File Size | 1.43 MB |
| Description | 320 RGB x 240 TFT LCD Driver |
| Datasheet |
 SSD2119M1 Datasheet
|
|
|
| Part number | SSD2119M1 |
|---|---|
| Manufacturer | SOLOMON SYSTECH |
| File Size | 1.43 MB |
| Description | 320 RGB x 240 TFT LCD Driver |
| Datasheet |
SSD2119M1 Datasheet
|
|
|
|
to R/D W/R and data pins of timing diagram P.32, 47 Corrected typo R12h from 0AD9 to 4F99 P.33, 47 Corrected R12 bi

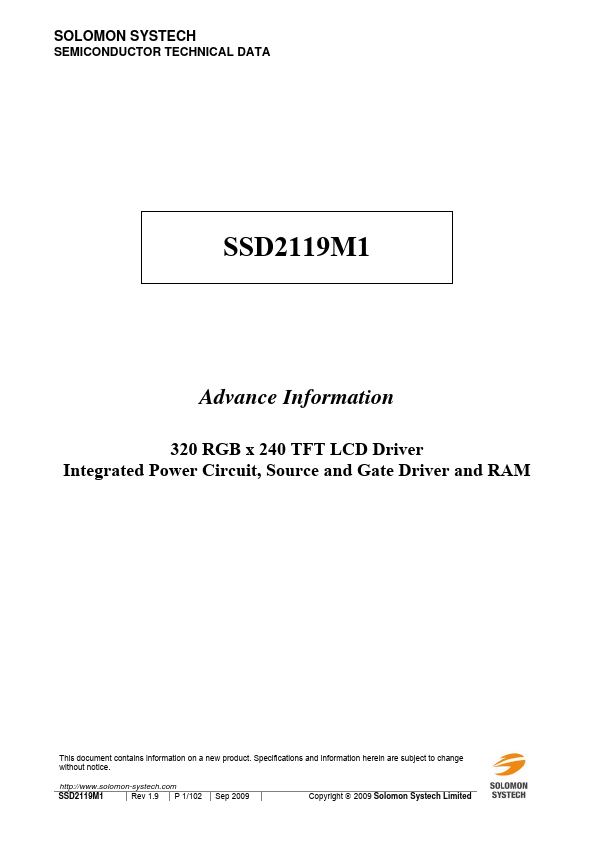

SOLOMON SYSTECH SEMICONDUCTOR TECHNICAL DATA SSD2119M1 Advance Information 320 RGB x 240 TFT LCD Driver Integrated Power Circuit, Source and Gate Driver and RAM This document contains information on a new product.
Specifications and information herein are subject to change without notice.
http://www.solomon-systech.com SSD2119M1 Rev 1.9 P 1/102 Sep 2009 Copyright © 2009 Solomon Systech Limited IC Revision history of SSD2119M1 Specification Version 1.0 1.1 1.2 1.3 Change Items Advanced information P.33, 48 Remove HVCI bit in R12h P.48, 87 Corrected R12h code to 2999h P.33, 51 Corrected R15h POR to B010h P.35 Correct read ID code from 1919h to 9919h P.12, 91 Swapped CYN and CYP pins P.33, 52, 53Add R16 and R17 register P.57 Add Program voltage range – 15.0V (Typical:15V, Min.:14.5V, Max.:15.25V) P.57 Added “It is possible to skip step3 and step4” and changed “Step 4-9” to “Step 5-9” P.34, 54 Added R20h Uniformity settings P.38, “G1 is the 1st gate output channel” is updated to “G2 is the 1st gate output channel” P.91Added chip tray information P.13 Changed die thickness to 300um and updated Die diagram in Die information P.11 Added ordering part number P.88 Updated Die diagram in Application circuit P.49 Added DEN pin application at R11h P.35 Added Remarks at R00h P.70 Removed (/CS) from tr and tf P.70 Added VCI and Reset pin to diagram P.71 Removed (/CS) from tr and tf P.72 Added VCI and Reset pin to diagram P.75 Updated Fig13-5 as power up sequence for RGB mode P.84 Added timing to display off sequence P.92 Corrected shifted VCHS to Gnd wire to proper position P.45 Added notes below table of R0CH P.53-54 Added Note: All porch settings are fixed and cannot be changed at MCU mode P.90 Corrected VGH capacitor to 25V in figure 19-2: Filtering and Charge Sharing Capacitors P.
