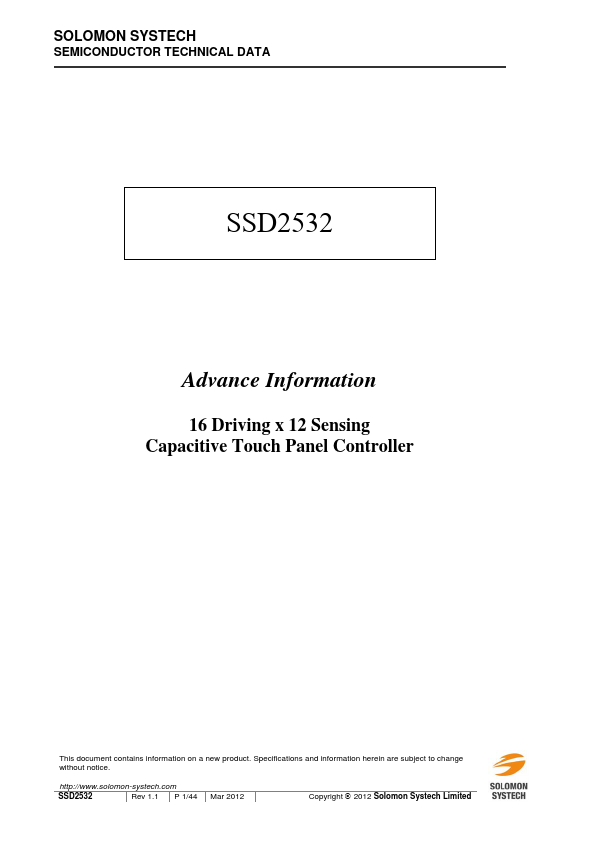

Datasheet Summary
SOLOMON SYSTECH
SEMICONDUCTOR TECHNICAL DATA
Advance Information
16 Driving x 12 Sensing Capacitive Touch Panel Controller
This document contains information on a new product. Specifications and information herein are subject to change without notice. http://.solomon-systech.
Rev 1.1 P 1/44 Mar 2012
Copyright © 2012 Solomon Systech Limited

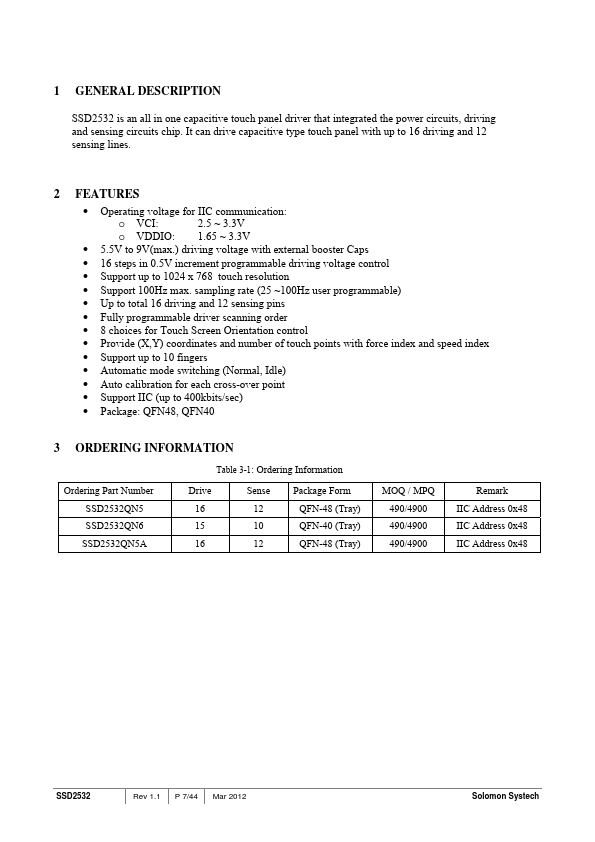

1 GENERAL DESCRIPTION
SSD2532 is an all in one capacitive touch panel driver that integrated the power circuits, driving and sensing circuits chip. It can drive capacitive type touch panel with up to 16 driving and 12 sensing lines.
2 Features
- Operating voltage for IIC munication: o VCI:
2.5 ~ 3.3V o VDDIO: 1.65 ~...
