ESDA14V2-1BF3 - TVS Clamping Array

General Description

The ESDA14V2-1BF3 is a monolithic bidirectional diode designed to protect 1 line against ESD transients.

The device is ideally suited for applications where both reduced line capacitance and board space saving are required.

Key Features

  • ESD Protection: IEC61000-4-2 level 4 Low leakage current Very small PCB area < 0.4 mm² 400 micron pitch Flip Chip (2 bumps) Complies with the following standards.
  • IEC61000-4-2 level 4.
  • 15 kV (air discharge).
  • 8 kV (contact discharge) Figure 1.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ESDA14V2-4BF1 QUAD BIDIRECTIONAL TRANSIL-TM ARRAY STMicroelectronics
ESDA14V2-4BF2 QUAD BIDIRECTIONAL TRANSIL-TM ARRAY STMicroelectronics
ESDA14V2 QUAD TRANSIL ARRAY FOR ESD PROTECTION STMicroelectronics
ESDA14V2 DUAL TRANSIL ARRAY FOR ESD PROTECTION STMicroelectronics
ESDA14V2BP6 ESD protection STMicroelectronics

Other Datasheets by STMicroelectronics

Part Number Description
ESDA14V2-4BF3 Quad bidirectional TRANSIL array
ESDA8V2-1J EOS and ESD Transil protection
ESDALC6V1-1BT2 Single line low capacitance Transil
ESDALC6V1-1BU2 Single-line low capacitance
ESDALC6V1-1U2 TVS Clamping Arrays

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

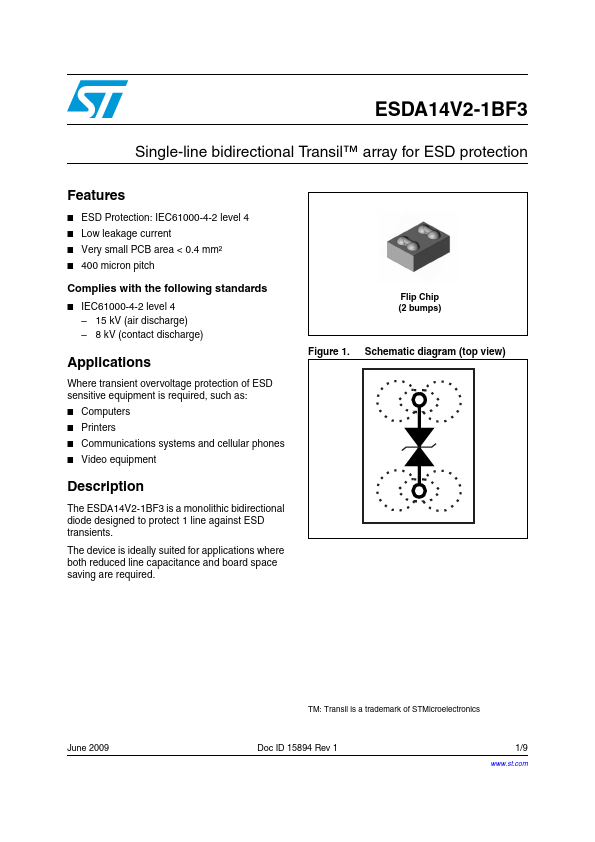

www.DataSheet4U.com ESDA14V2-1BF3 Single-line bidirectional Transil™ array for ESD protection Features ■ ■ ■ ■ ESD Protection: IEC61000-4-2 level 4 Low leakage current Very small PCB area < 0.4 mm² 400 micron pitch Flip Chip (2 bumps) Complies with the following standards ■ IEC61000-4-2 level 4 – 15 kV (air discharge) – 8 kV (contact discharge) Figure 1. Applications Where transient overvoltage protection of ESD sensitive equipment is required, such as: ■ ■ ■ ■ Schematic diagram (top view) Computers Printers Communications systems and cellular phones Video equipment Description The ESDA14V2-1BF3 is a monolithic bidirectional diode designed to protect 1 line against ESD transients.
