ESDALC6V1-1BT2 - Single line low capacitance Transil

General Description

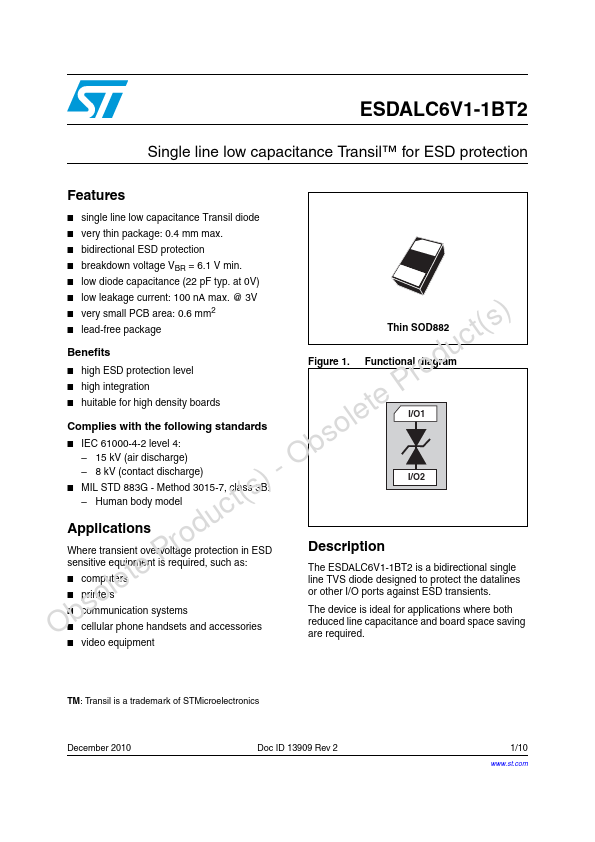

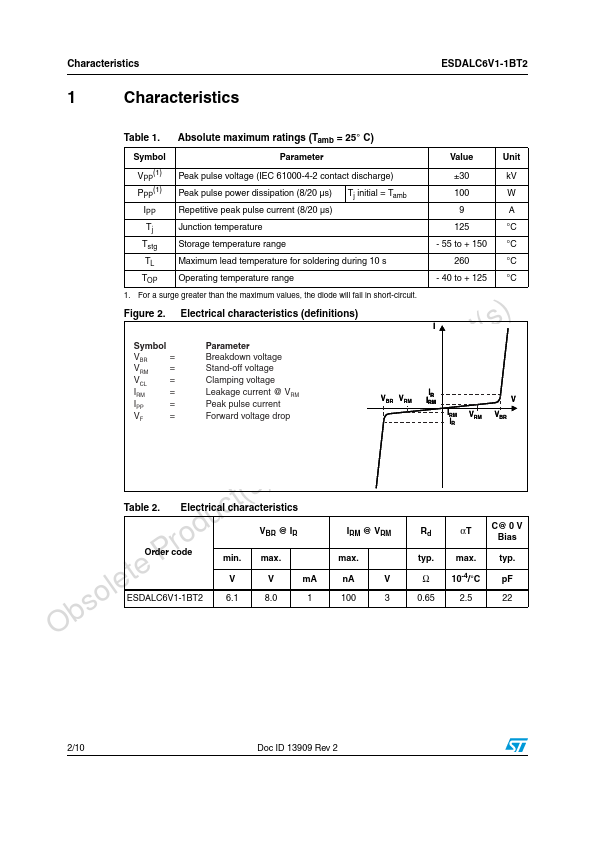

The ESDALC6V1-1BT2 is a bidirectional single line TVS diode designed to protect the datalines or other I/O ports against ESD transients.

The device is ideal for applications where both reduced line capacitance and board space saving are required.

Key Features

  • 1 line low capacitance.
