M24C04-W - 4-Kbit serial I2C bus EEPROM

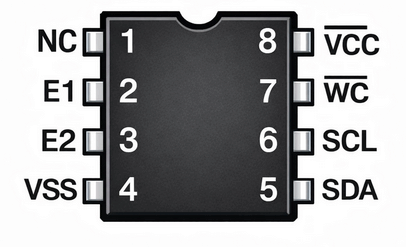

General Description

The M24C04 is a 4-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as 512 × 8 bits.

Key Features

  • Compatible with following I2C bus modes:.
  • 400 kHz.
  • 100 kHz.
  • Memory array:.
  • 4 Kbit (512 byte) of EEPROM.
  • Page size: 16 byte.
  • Single supply voltage:.
  • M24C04-W: 2.5 V to 5.5 V.
  • M24C04-R: 1.8 V to 5.5 V.
  • M24C04-F: 1.7 V to 5.5 V 1.6 V to 5.5 V (under temperature constraint).
  • Write:.
  • Byte write within 5 ms.
  • Page write within 5 ms.
  • Operating temperature range:.
  • from -.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
M2408NC020 Fast Recovery Diode IXYS
M2408NC040 Fast Recovery Diode IXYS
M2408NC060 Fast Recovery Diode IXYS
M2408ND020 Fast Recovery Diode IXYS
M2408ND040 Fast Recovery Diode IXYS

Other Datasheets by STMicroelectronics

Part Number Description
M24C04-125 serial I2C bus EEPROM
M24C04-A125 Automotive 4-Kbit serial I2C bus EEPROM
M24C04-DRE 4-Kbit serial I2C bus EEPROM
M24C04-F 4-Kbit serial I2C bus EEPROM
M24C04-R 4-Kbit serial I2C bus EEPROM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
M24C04-W M24C04-R M24C04-F Datasheet 4-Kbit serial I²C bus EEPROMs TSSOP8 (DW) 169 mil width SO8N (MN) 150 mil width UFDFPN8 (MC) DFN8 - 2 x 3 mm UFDFPN5 (MH) DFN5 - 1.7 x 1.4 mm Product status link M24C04-W M24C04-R M24C04-F Features • Compatible with following I2C bus modes: – 400 kHz – 100 kHz • Memory array: – 4 Kbit (512 byte) of EEPROM – Page size: 16 byte • Single supply voltage: – M24C04-W: 2.5 V to 5.5 V – M24C04-R: 1.8 V to 5.5 V – M24C04-F: 1.7 V to 5.5 V 1.6 V to 5.
