SM6T12A - 600W TVS

Download the SM6T12A datasheet PDF. This datasheet also covers the SM6T variant, as both devices belong to the same 600w tvs family and are provided as variant models within a single manufacturer datasheet.

General Description

The SM6T series are designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2 and MIL STD 883, method 3015, and electrical overstress according to IEC 61000-4-4 and 5.

This device is more generally used against surges below 600 W (10/1000 μs).

Key Features

  • Peak pulse power: 600 W (10/1000 μs) and 4 kW (8/20 μs).
  • Stand-off voltage range from 5 V to 188 V.
  • Unidirectional and bidirectional types.
  • Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C.
  • Operating Tj max: 150 °C.
  • High power capability at Tj max. : up to 515 W (10/1000 µs) K.
  • Lead finishing: matte tin plating Bidirectional A Unidirectional Product status link SM6T SM6T6V8A, SM6T6V8CA, SM6T7V5A, SM6T7V5CA, SM6T10A.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SM6T-STMicroelectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SM6T12A TRANSZORB SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR General Semiconductor
SM6T12A Transient Voltage Suppressors Vishay
SM6T12A SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE SunMate
SM6T12 SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE SunMate
SM6T120 SURFACE MOUNT TRANSIENT VOLTAGE SUPPESSOR DIODE SunMate

Other Datasheets by STMicroelectronics

Part Number Description
SM6T12AY Automotive 600W Transil
SM6T12CA 600W TVS
SM6T12CAY Automotive 600W Transil
SM6T100A 600W TVS
SM6T100CA 600W TVS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

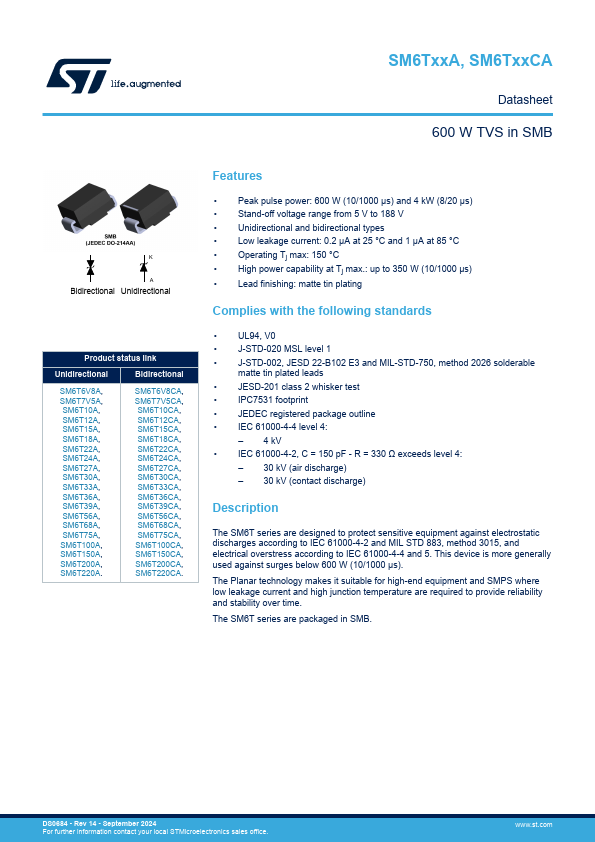

SM6T Datasheet 600 W TVS in SMB Features • Peak pulse power: 600 W (10/1000 μs) and 4 kW (8/20 μs) • Stand-off voltage range from 5 V to 188 V • Unidirectional and bidirectional types • Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C • Operating Tj max: 150 °C • High power capability at Tj max.
