Datasheet Details
| Part number | SM6T75CA |
|---|---|
| Manufacturer | STMicroelectronics |
| File Size | 521.94 KB |
| Description | 600W TVS |
| Datasheet |

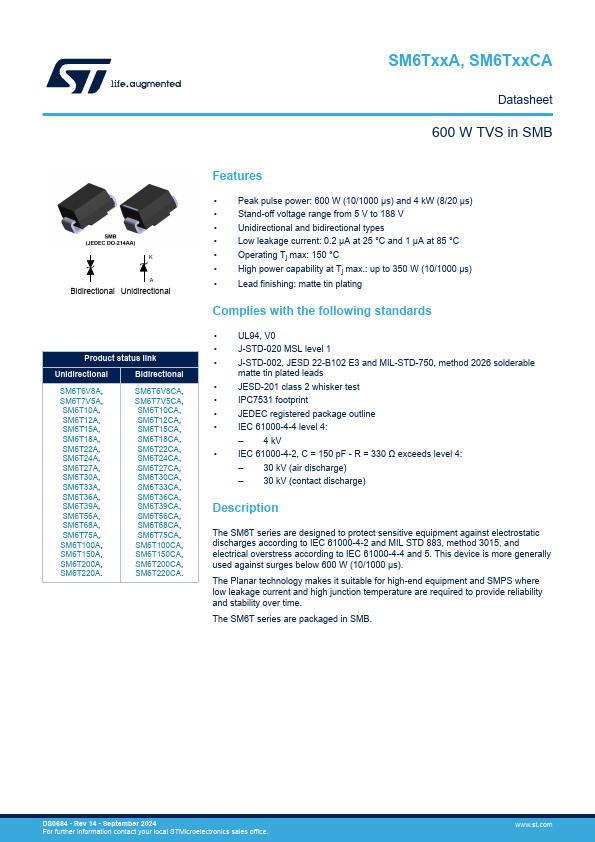

 SM6T75CA Datasheet
|
|
|
General Description
The SM6T series are designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2 and MIL STD 883, method 3015, and electrical overstress according to IEC 61000-4-4 and 5.
This device is more generally used against surges below 600 W (10/1000 μs).
Key Features
- Peak pulse power: 600 W (10/1000 μs) and 4 kW (8/20 μs).
- Stand-off voltage range from 5 V to 188 V.
- Unidirectional and bidirectional types.
- Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C.
- Operating Tj max: 150 °C.
- High power capability at Tj max. : up to 515 W (10/1000 µs) K.
- Lead finishing: matte tin plating Bidirectional A Unidirectional Product status link SM6T SM6T6V8A, SM6T6V8CA, SM6T7V5A, SM6T7V5CA, SM6T10A.
