STM32F407ZE - Arm 32-bit Cortex-M4 CPU

This page provides the datasheet information for the STM32F407ZE, a member of the STM32F405xx Arm 32-bit Cortex-M4 CPU family.

Product Overview

STMicroelectronics

Part number	STM32F407ZE
Manufacturer	STMicroelectronics
File Size	2.90 MB
Description	Arm 32-bit Cortex-M4 CPU
Datasheet	STM32F407ZE Datasheet

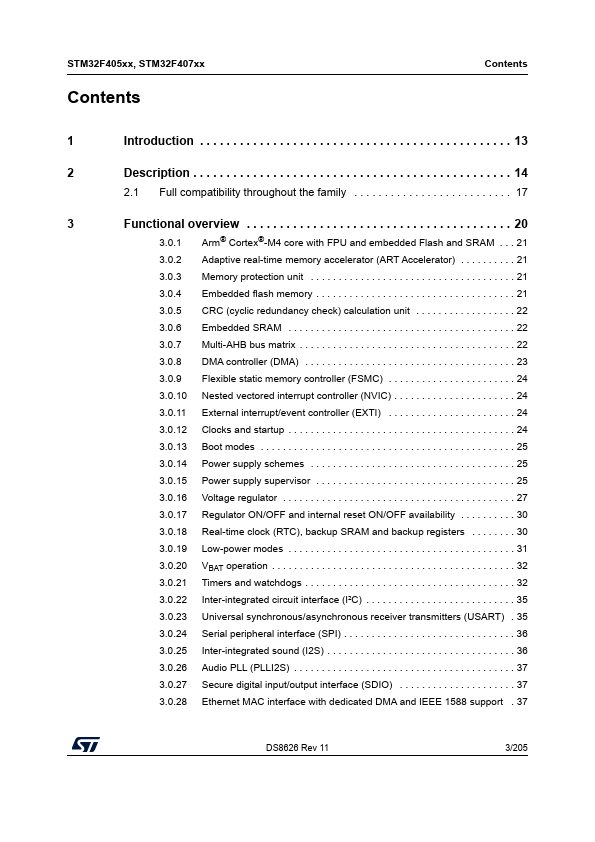

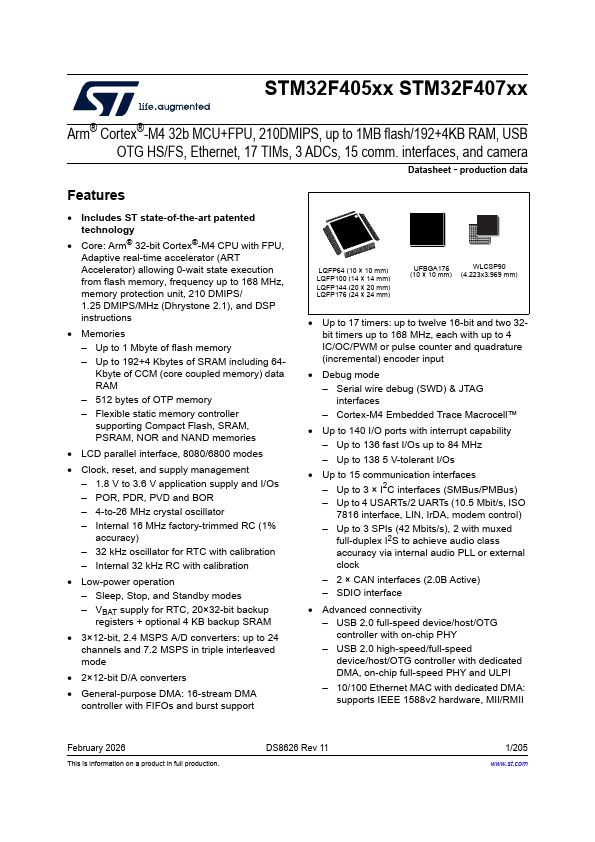

Additional preview pages of the STM32F407ZE datasheet.

20 3.0.1 Arm® Cor

Includes ST state-of-the-art patented technology.
Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) allowing 0-wait state execution from flash memory, frequency up to 168 MHz, memory protection unit, 210 DMIPS/ 1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions.
Memories.
Up to 1 Mbyte of flash memory.
Up to 192+4 Kbytes of SRAM including 64Kbyte of CCM (core coupled memory) data RAM.
512 bytes of.
