STMicroelectronics STM32F407ZG
The STM32F405xx and STM32F407xx family is based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex®-M4 core features a floating-point unit (FPU) single precision which supports all Arm singleprecision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.| Part No. | STM32F407ZG |
|---|---|
| Datasheet | STM32F407ZG Download |
| Manufacturer |  STMicroelectronics |
| Description | Arm 32-bit Cortex-M4 CPU |
| Buy | Stock & Price |

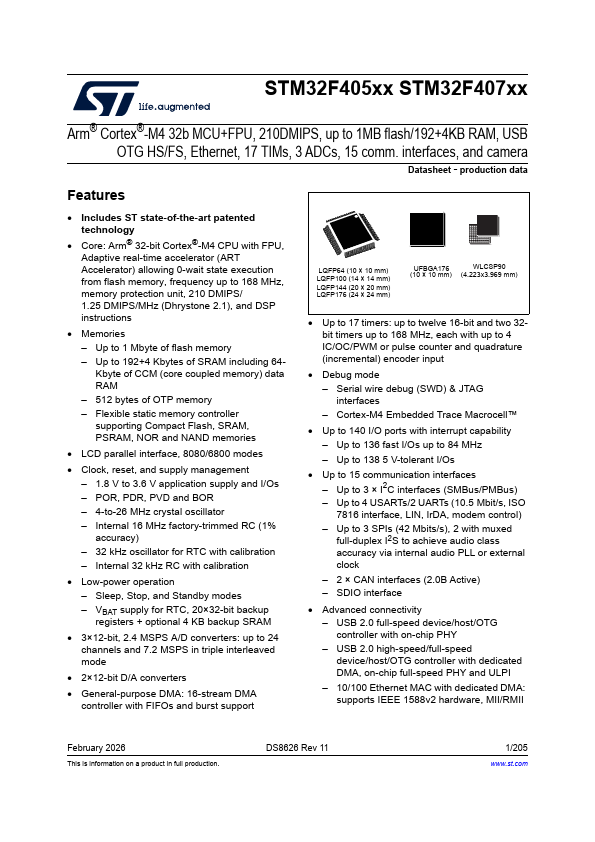

FEATURES
● Includes ST state-of-the-art patented technology● Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator) allowing 0-wait state execution from flash memory, frequency up to 168 MHz, memory protection unit, 210 DMIPS/ 1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
● Memories – Up to 1 Mbyte of flash memory – Up to 192+4 Kbytes of SRAM including 64Kbyte of CCM (core coupled memory) data RAM – 512 bytes of OTP memory – Flexible static memory controller supporting CompactFlash™, SRAM, PSRAM, NOR and NAND memories
● LCD parallel interface, 8080/6800 modes
● Clock, reset, and supply management – 1.8 V to 3.6 V application supply and I/Os – POR, PDR, PVD and BOR – 4-to-26 MHz crystal oscillator – Internal 16 MHz factory-trimmed RC (1% accuracy) – 32 kHz oscillator for RTC with calibration – Internal 32 kHz RC with calibration
● Low-power operation – Sleep, Stop, and Standby modes – VBAT supply for RTC, 20×32-bit backup registers + optional...
