STM32H742AG - 32-bit Arm Cortex-M7 480MHz MCUs

This page provides the datasheet information for the STM32H742AG, a member of the STM32H742VI 32-bit Arm Cortex-M7 480MHz MCUs family.

Datasheet Summary

Features

  • Includes ST state-of-the-art patented technology Core.
  • 32-bit Arm® Cortex®-M7 core with doubleprecision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions Memories.
  • Up to 2 Mbytes of flash memory with readwhile-write support.
  • Up to 1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc. 64 Kbytes of ITCM RAM + 128 Kbytes of DTCM RAM for time critical routines), Up to.

📥 Download Datasheet

Datasheet preview – STM32H742AG

Datasheet Details

Part number STM32H742AG
Manufacturer STMicroelectronics
File Size 7.00 MB
Description 32-bit Arm Cortex-M7 480MHz MCUs
Datasheet download datasheet STM32H742AG Datasheet

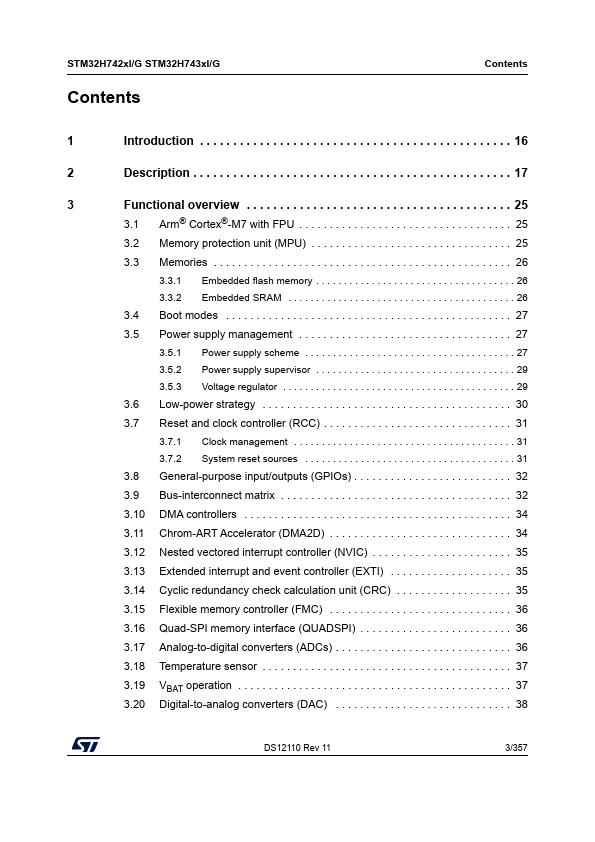

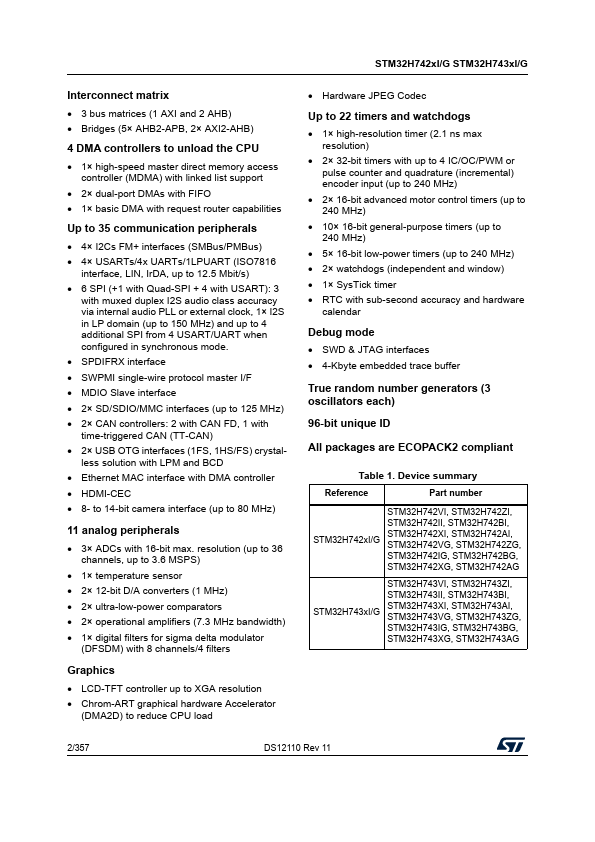

Additional preview pages of the STM32H742AG datasheet.

📁 Similar Datasheet

  • STM32F103ZE - ARM-CM3 Board User Manual (EMBEST)
  • STM301N - N-Channel MOSFET (SamHop Microelectronics)
  • STM-1116 - 800 - 1000 MHz High Linearity Active Transmit Mixer (ETC)
  • STM-2016 - 1800 - 2200 MHz High Linearity Silicon Germanium Active Transmit Mixer (Stanford Microdevices)
  • STM-3116 - High Linearity Active Transmit Mixer (Sirenza Microdevices)
  • STM-S3 - STRATUM 3 SIMPLIFIED CONTROL TIMING MODULES (Connor-Winfield)
  • STM-S3E - Stratum 3E Timing Module (Connor-Winfield)
  • STM025QVT-001 - LCD Module (Space Display)
  • STM1001 - Reset Circuit (ST Microelectronics)
  • STM101N - N-Channel MOSFET (SamHop Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STM32H742xI/G STM32H743xI/G 32-bit Arm® Cortex®-M7 480MHz MCUs, up to 2MB flash, up to 1MB RAM, 46 com. and analog interfaces Datasheet - production data Features Includes ST state-of-the-art patented technology Core • 32-bit Arm® Cortex®-M7 core with doubleprecision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions Memories • Up to 2 Mbytes of flash memory with readwhile-write support • Up to 1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc.
