Download the STM32H742BI datasheet PDF.
This datasheet also covers the STM32H742VI variant, as both devices belong to the same 32-bit arm cortex-m7 480mhz mcus family and are provided as variant models within a single manufacturer datasheet.
Key Features
Includes ST state-of-the-art patented technology
Core.
32-bit Arm® Cortex®-M7 core with doubleprecision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
Memories.
Up to 2 Mbytes of flash memory with readwhile-write support.
Up to 1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc. 64 Kbytes of ITCM RAM + 128 Kbytes of DTCM RAM for time critical routines), Up to.
Note: The manufacturer provides a single datasheet file (STM32H742VI-STMicroelectronics.pdf) that lists specifications for multiple related part numbers.
Full PDF Text Transcription for STM32H742BI (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
STM32H742BI. For precise diagrams, and layout, please refer to the original PDF.

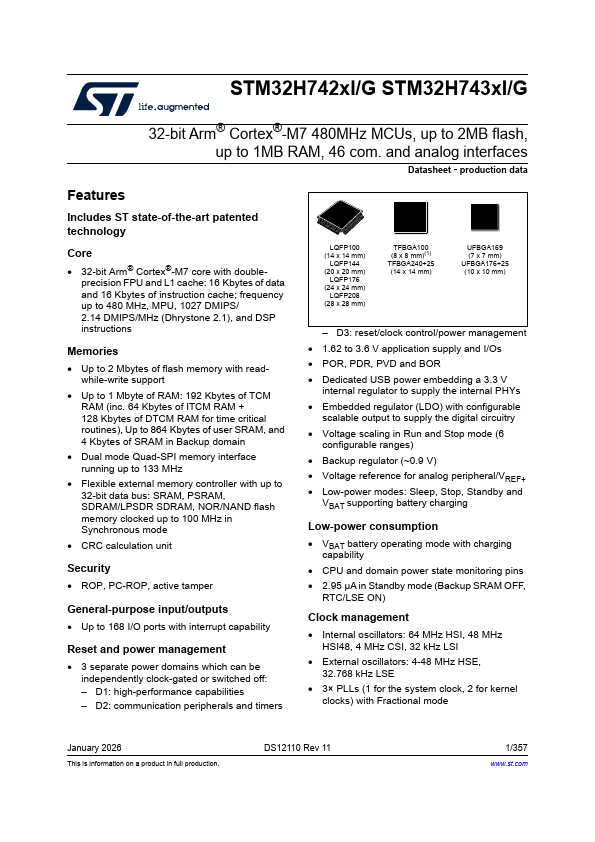

STM32H742xI/G STM32H743xI/G 32-bit Arm® Cortex®-M7 480MHz MCUs, up to 2MB flash, up to 1MB RAM, 46 com. and analog interfaces Datasheet - production data Features Include...
View more extracted text
om. and analog interfaces Datasheet - production data Features Includes ST state-of-the-art patented technology Core • 32-bit Arm® Cortex®-M7 core with doubleprecision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions Memories • Up to 2 Mbytes of flash memory with readwhile-write support • Up to 1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc.
STM32H742BI Datasheet
