STM32H753VI - 32-bit Arm Cortex-M7 480MHz MCUs

Product Overview

STMicroelectronics

Part number	STM32H753VI
Manufacturer	STMicroelectronics
File Size	20.52 MB
Description	32-bit Arm Cortex-M7 480MHz MCUs
Datasheet	STM32H753VI Datasheet

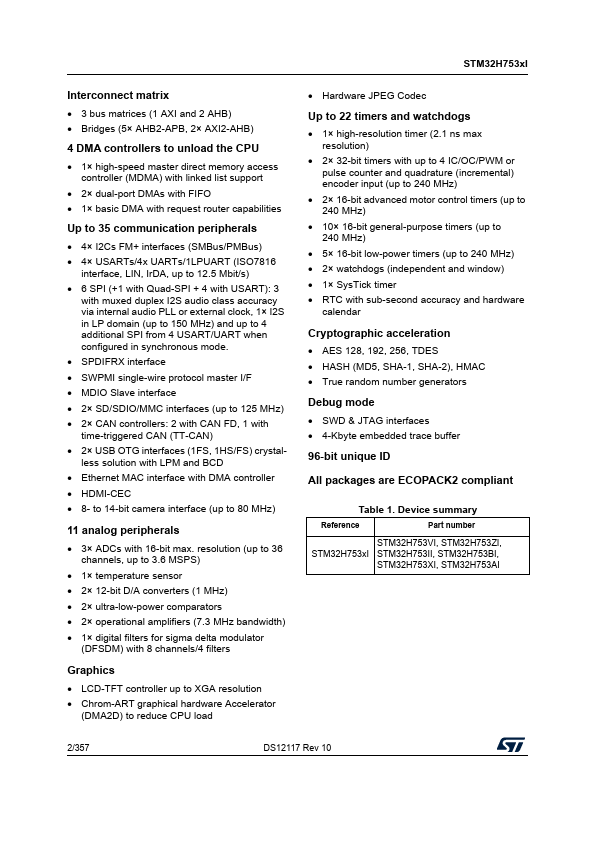

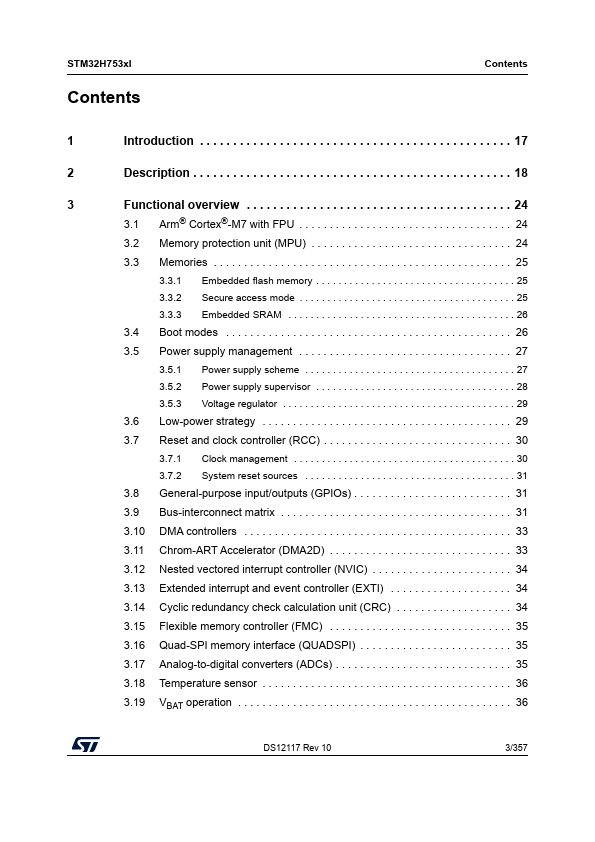

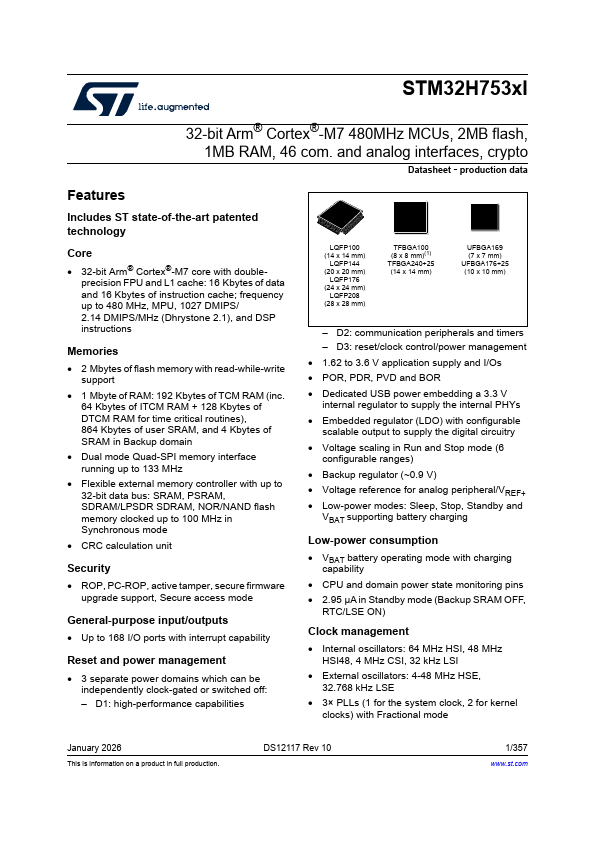

Additional preview pages of the STM32H753VI datasheet.

Includes ST state-of-the-art patented technology Core.
32-bit Arm® Cortex®-M7 core with doubleprecision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions Memories.
2 Mbytes of flash memory with read-while-write support.
1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc. 64 Kbytes of ITCM RAM + 128 Kbytes of DTCM RAM for time critical routines), 864 Kbytes of us.
