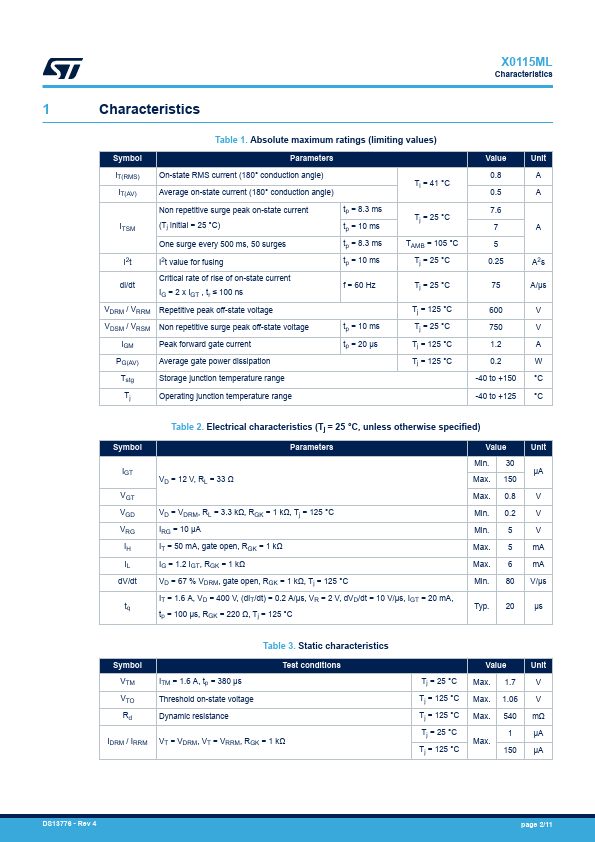

Features - On-state rms current, 0.8 A sensitive - Repetitive peak off-state voltage, 600 V - Non-repetitive surge peak off-state voltage, 750 V - Narrow sensitive gate current range [30 to 150] µA - pact SOT23-3L package: - Creepage distance of 1.1 mm - 9 mm² footprint Applications - Ground-fault circuit interrupter (GFI) - Arc-fault circuit interrupter (AFCI) - Overvoltage crowbar protection in power supplies - Capacitive ignition circuits - Low consumption triggering switches Description Thanks to highly sensitive triggering levels, X0115ML SCR thyristor is suitable for all applications where available gate current is limited. The X0115ML offers a high blocking voltage of 600 V, and a surge peak voltage of 750 V, ideal for applications like ground fault circuit interrupter (GFCI) and arc fault circuit interrupters (AFCI). The SOT23-3L package provides the smallest SCR footprint while keeping 1.1 mm creepage distance, guaranteeing 120 V functional insulation (UL-840) at level 2 pollution degree without extra certification. DS13776 - Rev 3 - January 2022 For further information contact your local STMicroelectronics sales office. .st. Characteristics Characteristics Table 1. Absolute maximum ratings (limiting values) Symbol Parameters IT(RMS) On-state RMS current (180° conduction angle) IT(AV) Average on-state current (180° conduction angle) ITSM Non repetitive surge peak on-state current (Tj initial = 25 °C) tp = 8.3 ms tp = 10 ms One surge every 500 ms, 50 surges tp = 8.3 ms I2t I2t value for fusing tp = 10 ms Critical rate of rise of on-state current dl/dt IG = 2 x IGT , tr ≤ 100 ns f = 60 Hz VDRM / VRRM Repetitive peak off-state voltage VDSM / VRSM Non repetitive surge peak off-state voltage tp = 10...
