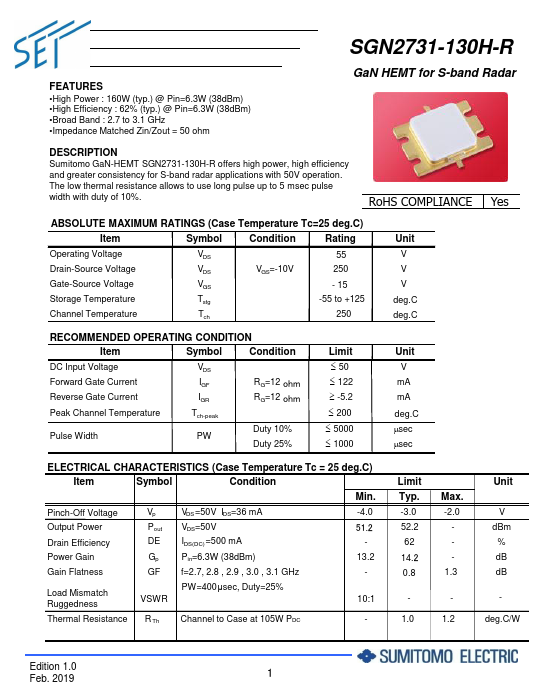

SGN2731-130H-R
SGN2731-130H-R is GaN HEMT manufactured by SUMITOMO.
FEATURES
- High Power : 160W (typ.) @ Pin=6.3W (38d Bm)
- High Efficiency : 62% (typ.) @ Pin=6.3W (38d Bm)
- Broad Band : 2.7 to 3.1 GHz
- Impedance Matched Zin/Zout = 50 ohm
Ga N HEMT for S-band Radar
DESCRIPTION
Sumitomo Ga N-HEMT SGN2731-130H-R offers high power, high efficiency and greater consistency for S-band radar applications with 50V operation.
The low thermal resistance allows to use long pulse up to 5 msec pulse width with duty of 10%.
Ro HS PLIANCE Yes
ABSOLUTE MAXIMUM RATINGS (Case Temperature Tc=25 deg.C)
Item
Symbol
Condition
Rating
Operating Voltage
Drain-Source Voltage
VGS=-10V
Gate-Source Voltage
- 15
Storage Temperature
Tstg
-55 to +125
Channel Temperature
Tch
Unit V V V deg.C deg.C
REMENDED OPERATING CONDITION
Item
Symbol
Condition
DC Input Voltage Forward Gate Current Reverse Gate Current
RG=12...
