KLMAG2GE4A-A001
KLMAG2GE4A-A001 is e-MMC manufactured by Samsung Semiconductor.
features of the Samsung NAND flash and achieves optimal performance.

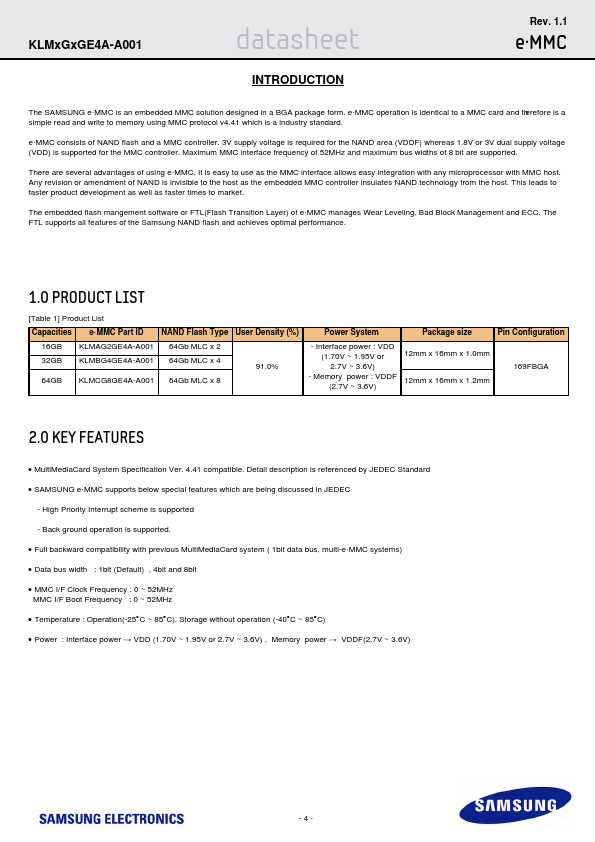

1.0 PRODUCT LIST
[Table 1] Product List
Capacities e- MMC Part ID NAND Flash Type User Density (%)
16GB KLMAG2GE4A-A001 64Gb MLC x 2
32GB KLMBG4GE4A-A001 64Gb MLC x 4
91.0%
64GB KLMCG8GE4A-A001 64Gb MLC x 8
Power System
Package size
Pin Configuration
- Interface power : VDD (1.70V ~ 1.95V or 2.7V ~ 3.6V)
- Memory power : VDDF (2.7V ~ 3.6V)
12mm x 16mm x 1.0mm 12mm x 16mm x 1.2mm
169FBGA
- 2.0 KEY FEATURES
- Multi Media Card System Specification Ver. 4.41 patible. Detail description is referenced by JEDEC Standard
- SAMSUNG e-...
