KLMCG8GE4A-A001 Datasheet | Samsung Semiconductor

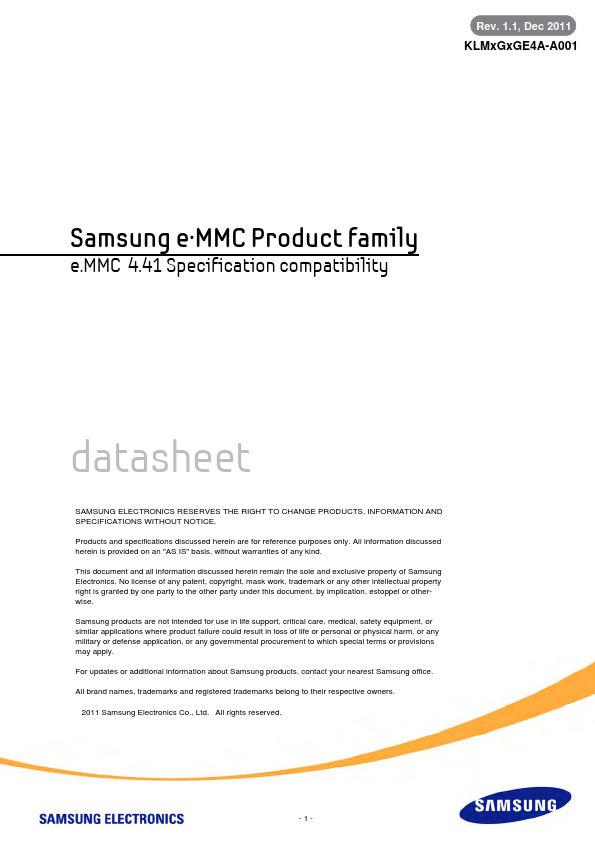

Rev. 1.1, Dec 2011 KLMx Gx GE4A-A001 Samsung e- MMC Product family e.MMC 4.41 Specification patibility - datasheet SAMSUNG ELECTRONICS RESERVES THE RIGHT TO CHANGE PRODUCTS, INFORMATION AND SPECIFICATIONS WITHOUT NOTICE. Products and specifications discussed herein are for reference purposes only. All information discussed herein is provided on an "AS IS" basis, without warranties of any kind. This document and all information discussed herein remain the sole and exclusive property of Samsung Electronics. No license of any patent, copyright, mask work, trademark or any other intellectual property right is granted by one party to the other party under this document, by implication, estoppel or otherwise. Samsung products are not intended for use in life support, critical care, medical, safety equipment, or similar applications where product failure could result in loss of life or personal or physical harm, or any military or defense application, or any governmental procurement to which special terms or provisions may apply. For updates or additional information about Samsung products, contact your nearest Samsung office. All brand names, trademarks and registered trademarks belong to their respective owners. 2011 Samsung Electronics Co., Ltd. All rights reserved. -1- http://.. KLMx Gx GE4A-A001 datasheet Rev. 1.1 e- MMC INTRODUCTION The SAMSUNG e- MMC is an embedded MMC solution designed in a BGA package form. e- MMC operation is identical to a MMC card and therefore is a simple read and write to memory using MMC protocol v4.41 which is a industry standard. e- MMC consists of NAND flash and a MMC controller. 3V supply voltage is required for the NAND area (VDDF) whereas 1.8V or 3V dual supply voltage (VDD) is supported for the MMC controller. Maximum MMC interface frequency of 52MHz and maximum bus widths of 8 bit are supported. There are several advantages of using e- MMC. It is easy to use as the MMC interface allows easy integration with any...
