LTN160HT01-A01 Overview

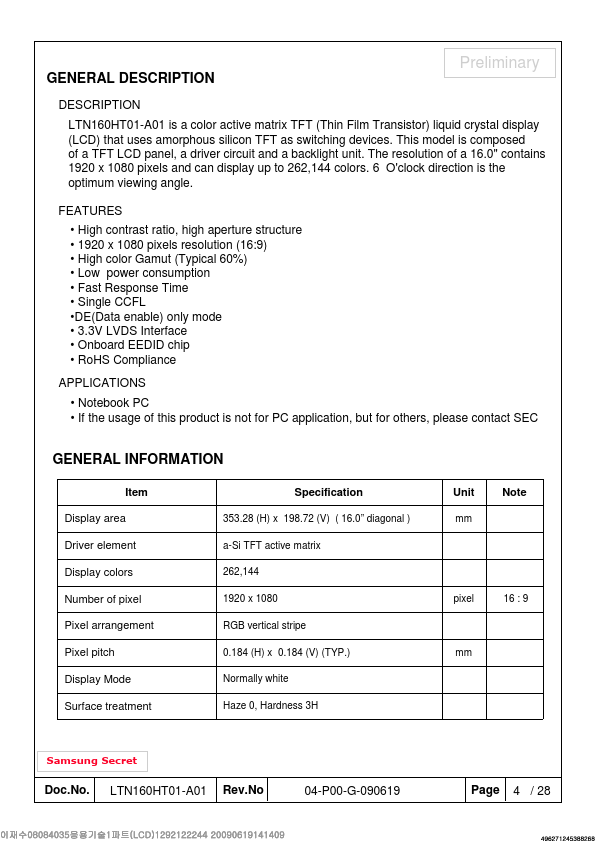

Preliminary DESCRIPTION LTN160HT01-A01 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as switching devices. This model is posed of a TFT LCD panel, a driver circuit and a backlight unit. The resolution of a 16.0" contains 1920 x 1080 pixels and can display up to 262,144 colors.
LTN160HT01-A01 Key Features
- High contrast ratio, high aperture structure
- 1920 x 1080 pixels resolution (16:9)
- High color Gamut (Typical 60%)
- Low power consumption
- Fast Response Time
- Single CCFL -DE(Data enable) only mode
- 3.3V LVDS Interface
- Onboard EEDID chip
- RoHS pliance
