LTN160HT01-A02 - LCD Module

Description

1.

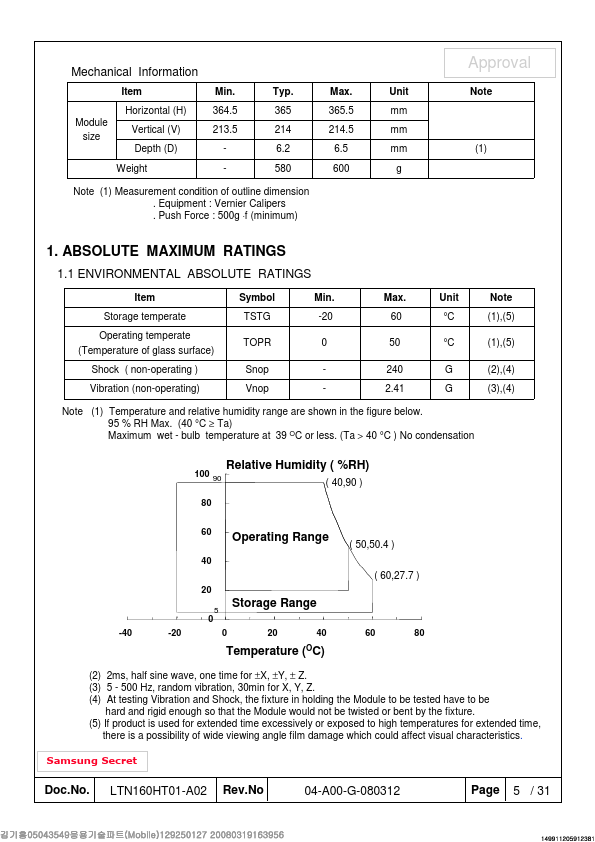

Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2.

Optical Characteristics 3.

Features

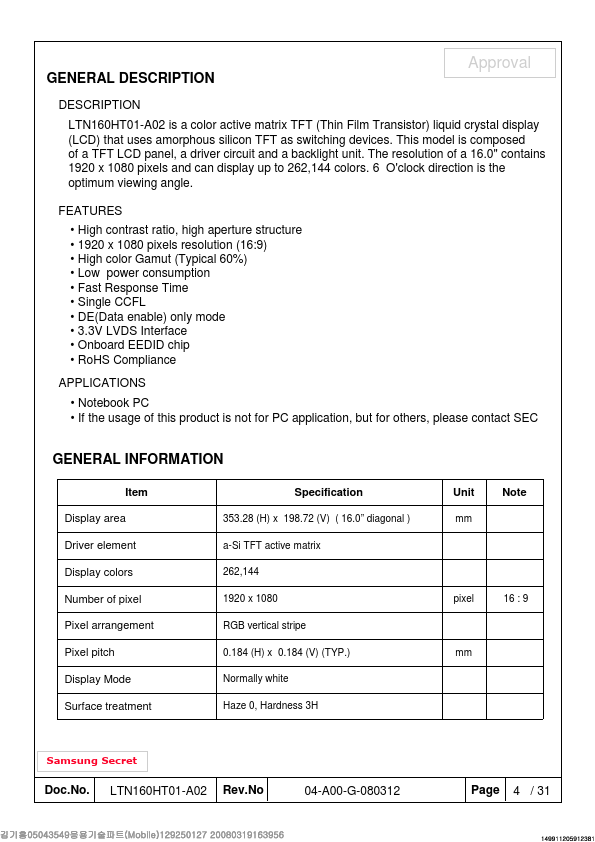

  • High contrast ratio, high aperture structure.
  • 1920 x 1080 pixels resolution (16:9).
  • High color Gamut (Typical 60%).
  • Low power consumption.
  • Fast Response Time.
  • Single CCFL.
  • DE(Data enable) only mode.
  • 3.3V LVDS Interface.
  • Onboard EEDID chip.
  • RoHS Compliance.

📥 Download Datasheet

Datasheet preview – LTN160HT01-A02

📁 Similar Datasheet

  • LTN101AL03-801 - LCD (ETC)
  • LTN111 - LCD (NXP)
  • LTN121X1-L01 - color active matrix TFT (Thin Film Transistor) liquid crystal display (Samsung semiconductor)
  • LTN141P1-L01 - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141x - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141X8-L02 - TFT Display Module (ETC)
  • LTN211 - Liquid Crystal Display (Philips)
Other Datasheets by Samsung

Full PDF Text Transcription

Click to expand full text

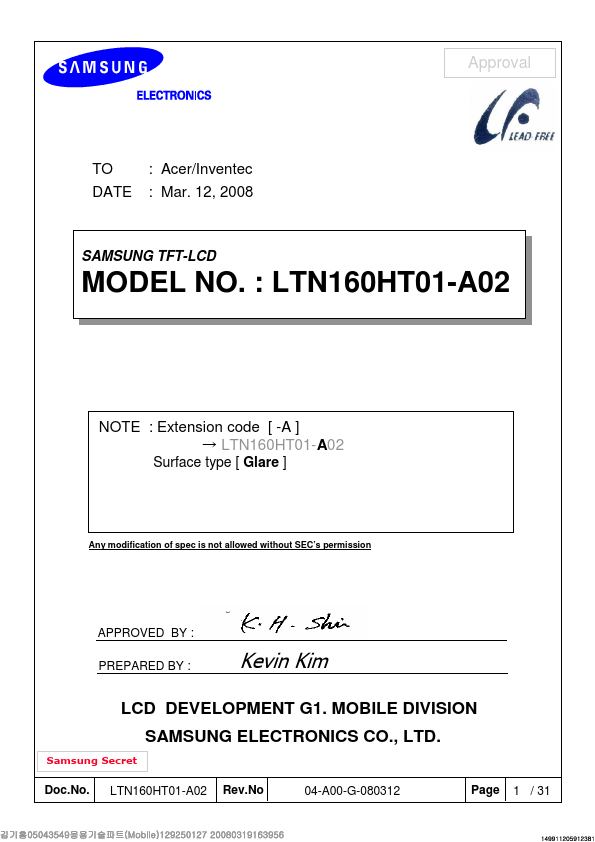

www.bu.org.ua / tel: (+380-44) 227-52-62, 587-94-99 Approval TO DATE : Acer/Inventec : Mar. 12, 2008 SAMSUNG SAMSUNGTFT-LCD TFT-LCD MODEL MODEL NO. NO. :: LTN160HT01-A02 LTN160HT01-A02 NOTE : Extension code [ -A ] → LTN160HT01-A02 Surface type [ Glare ] Any modification of spec is not allowed without SEC’s permission APPROVED BY : PREPARED BY : Kevin Kim LCD DEVELOPMENT G1. MOBILE DIVISION SAMSUNG ELECTRONICS CO., LTD. Samsung Secret Doc.No. www.DataSheet4U.net LTN160HT01-A02 Rev.No 04-A00-G-080312 Page 1 / 31 www.bu.org.ua / tel: (+380-44) 227-52-62, 587-94-99 Approval CONTENTS Revision History General Description 1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.
