LTN160HT01 - Display Module

Description

1.

Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2.

Optical Characteristics 3.

Features

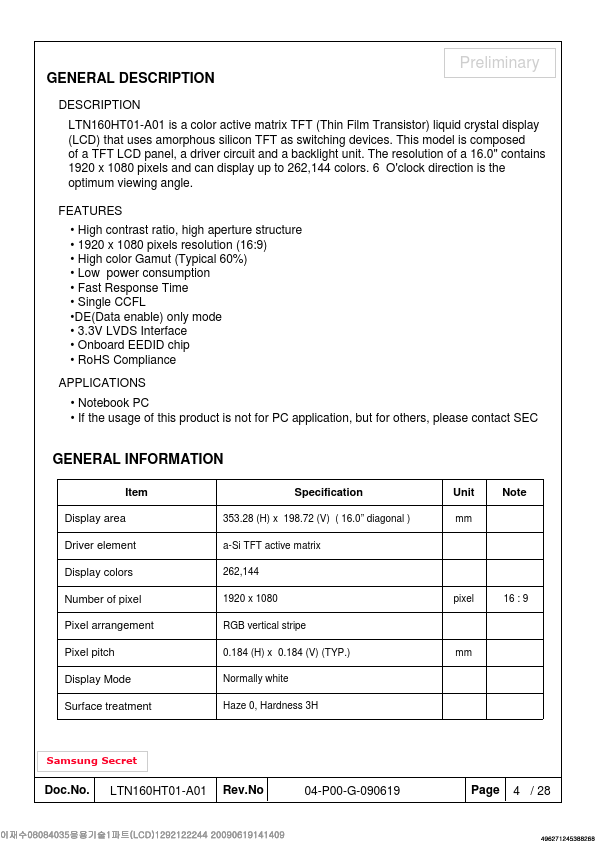

  • High contrast ratio, high aperture structure.
  • 1920 x 1080 pixels resolution (16:9).
  • High color Gamut (Typical 60%).
  • Low power consumption.
  • Fast Response Time.
  • Single CCFL.
  • DE(Data enable) only mode.
  • 3.3V LVDS Interface.
  • Onboard EEDID chip.
  • RoHS Compliance.

📥 Download Datasheet

Datasheet preview – LTN160HT01

📁 Similar Datasheet

  • LTN101AL03-801 - LCD (ETC)
  • LTN111 - LCD (NXP)
  • LTN121X1-L01 - color active matrix TFT (Thin Film Transistor) liquid crystal display (Samsung semiconductor)
  • LTN141P1-L01 - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141x - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141X8-L02 - TFT Display Module (ETC)
  • LTN211 - Liquid Crystal Display (Philips)
Other Datasheets by Samsung

Full PDF Text Transcription

Click to expand full text

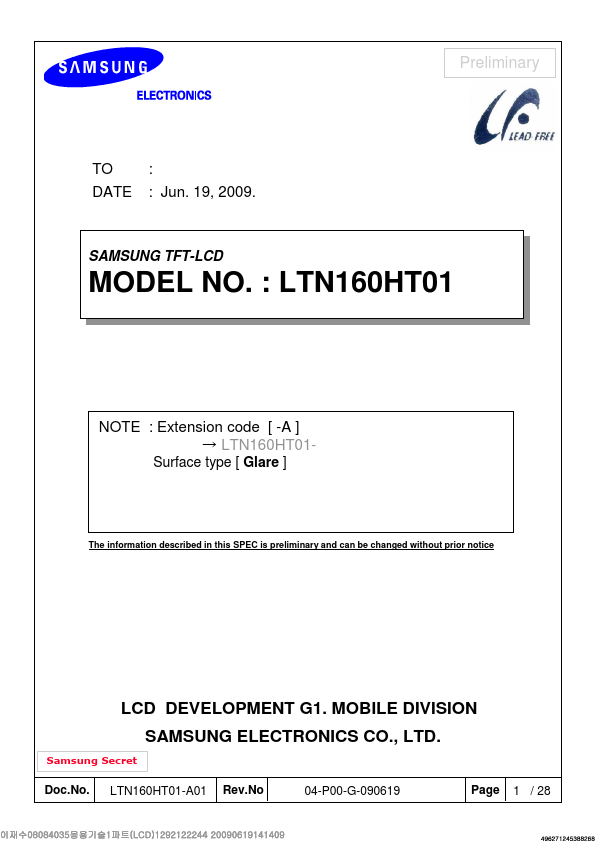

www.DataSheet.co.kr Preliminary TO DATE : : Jun. 19, 2009. SAMSUNG SAMSUNGTFT-LCD TFT-LCD MODEL MODEL NO. NO. :: LTN160HT01 LTN160HT01 NOTE : Extension code [ -A ] → LTN160HT01Surface type [ Glare ] The information described in this SPEC is preliminary and can be changed without prior notice LCD DEVELOPMENT G1. MOBILE DIVISION SAMSUNG ELECTRONICS CO., LTD. Samsung Secret Doc.No. LTN160HT01-A01 Rev.No 04-P00-G-090619 Page 1 / 28 Datasheet pdf - http://www.DataSheet4U.net/ www.DataSheet.co.kr Preliminary CONTENTS Revision History General Description 1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit 3.3 Inverter 4. Block Diagram 4.
