LTN170BT08-G01 - TFT LCD

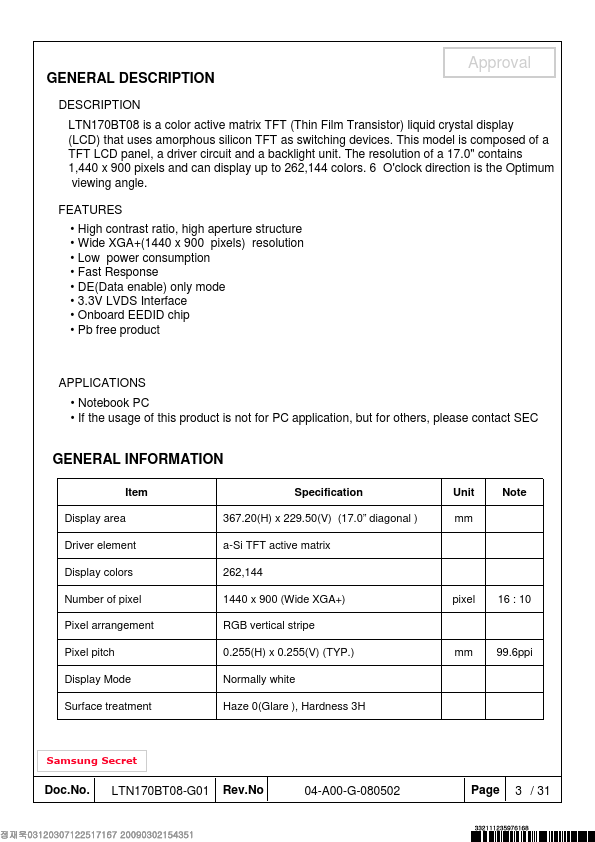

General Description

1.

2.

3.

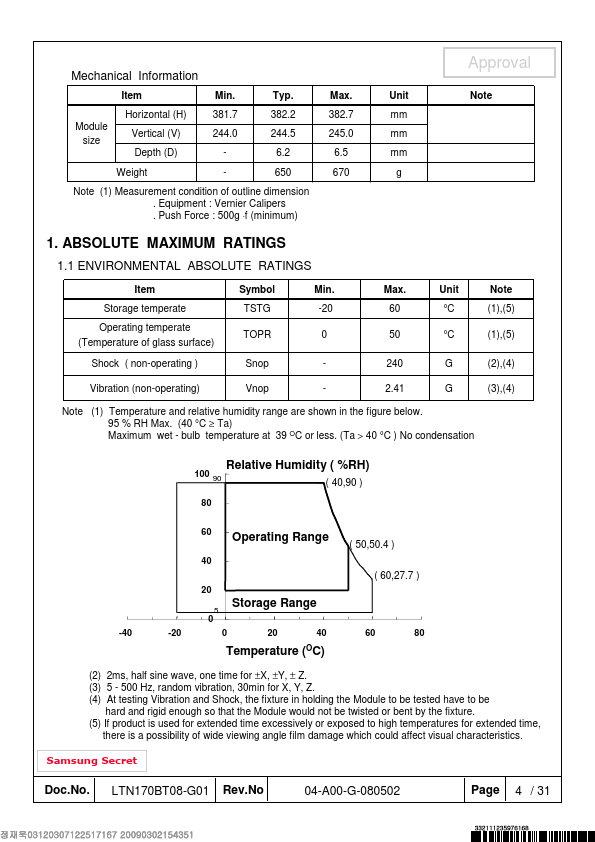

Key Features

  • High contrast ratio, high aperture structure.
  • Wide XGA+(1440 x 900 pixels) resolution.
  • Low power consumption.
  • Fast Response.
  • DE(Data enable) only mode.
  • 3.3V LVDS Interface.
  • Onboard EEDID chip.
  • Pb free product.
