LTN173KT02-T01 - TFT LCD

Description

1.

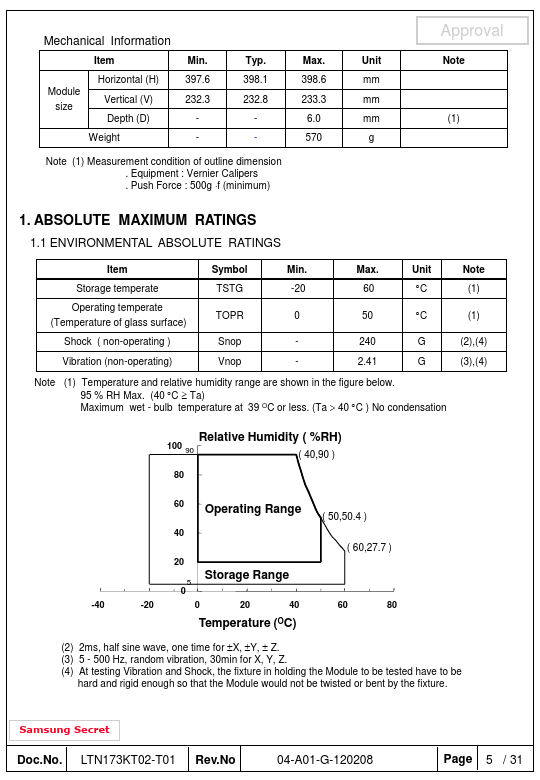

Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2.

Optical Characteristics 3.

Features

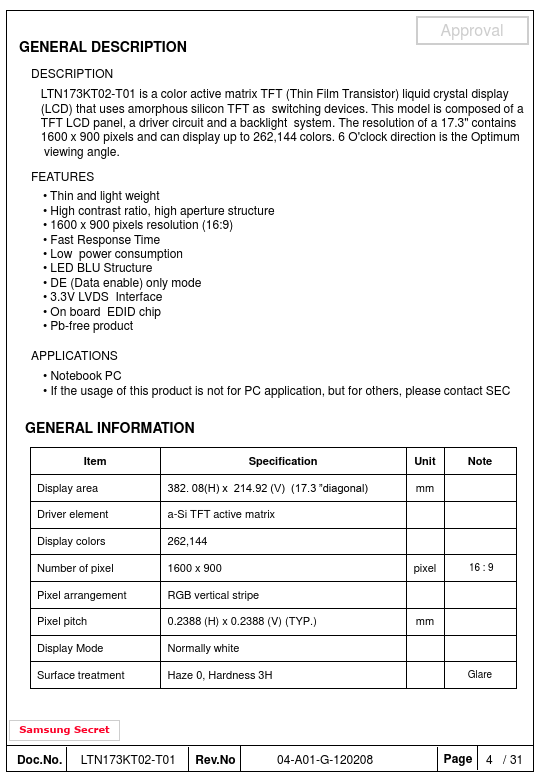

  • Thin and light weight.
  • High contrast ratio, high aperture structure.
  • 1600 x 900 pixels resolution (16:9).
  • Fast Response Time.
  • Low power consumption.
  • LED BLU Structure.
  • DE (Data enable) only mode.
  • 3.3V LVDS Interface.
  • On board EDID chip.
  • Pb-free product.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LTN101AL03-801 LCD ETC
LTN111 LCD NXP
LTN121X1-L01 color active matrix TFT (Thin Film Transistor) liquid crystal display Samsung semiconductor
LTN141P1-L01 color active matrix TFT liquid crystal display Samsung semiconductor
LTN141x color active matrix TFT liquid crystal display Samsung semiconductor

Other Datasheets by Samsung Semiconductor

Part Number Description
LTN173KT01-C01 Display Module
LTN173KT03-H01 TFT LCD Module
LTN170BT08-G01 TFT LCD
LTN170BT09-001 LCD
LTN170CT01-001 TFT LCD Module

Full PDF Text Transcription

Click to expand full text

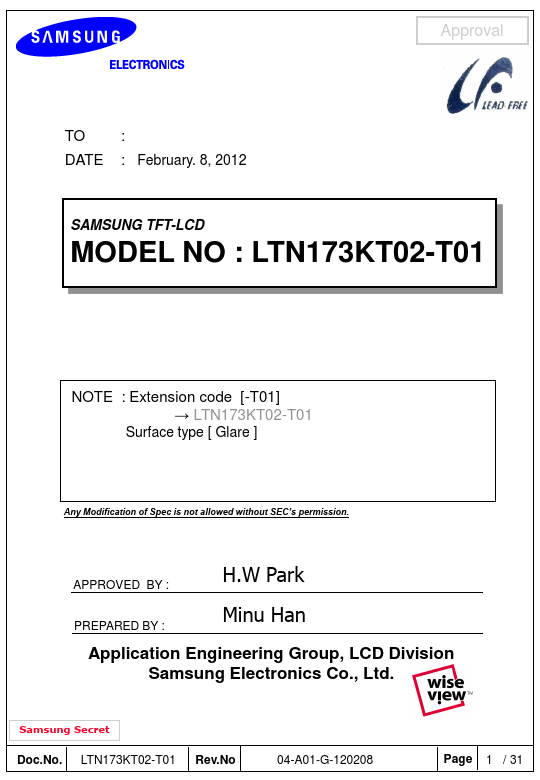

Approval TO DATE : Toshiba : February. 8, 2012 SAMSUNG TFT-LCD MODEL NO : LTN173KT02-T01 NOTE : Extension code [-T01] → LTN173KT02-T01 Surface type [ Glare ] Any Modification of Spec is not allowed without SEC’s permission. APPROVED BY : PREPARED BY : H.W Park Minu Han Application Engineering Group, LCD Division Samsung Electronics Co., Ltd. Samsung Secret Doc.No. LTN173KT02-T01 Rev.No 04-A01-G-120208 Page 1 / 31 Free Datasheet http://www.Datasheet4U.com Approval CONTENTS Revision History -------------------( 3 ) General Description 1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit 3.3 LED Driver 4. Block Diagram 4.
