FRD100CA100 - (FRD100CA100 / FRD100CA120) DIODE MODULE

SanRex Corporation

Datasheet Details

Part number	FRD100CA100
Manufacturer	SanRex Corporation
File Size	124.04 KB
Description	(FRD100CA100 / FRD100CA120) DIODE MODULE
Datasheet	FRD100CA100 Datasheet
Additional preview pages of the FRD100CA100 datasheet.

📁 Similar Datasheet

FRD12000 - screened 8kV (Cynergy3)
FRD1212 - DUAL OUTPUT/ 5 WATT (Power-One)
FRD1215 - DUAL OUTPUT/ 5 WATT (Power-One)
FRD13000 - fully screened 9kV (Cynergy3)
FRD - DUAL OUTPUT/ 5 WATT (Power-One)
FRD080HSD001 - LCD Module (Frida)
FRD2412 - DUAL OUTPUT/ 5 WATT (Power-One)
FRD2415 - DUAL OUTPUT/ 5 WATT (Power-One)
FRD2812 - DUAL OUTPUT/ 5 WATT (Power-One)
FRD2815 - DUAL OUTPUT/ 5 WATT (Power-One)

Other Datasheets by SanRex Corporation

FRD100CA120 - (FRD100CA100 / FRD100CA120) DIODE MODULE
FRD100BA60 - DIODE MODULE

Full PDF Text Transcription

Click to expand full text

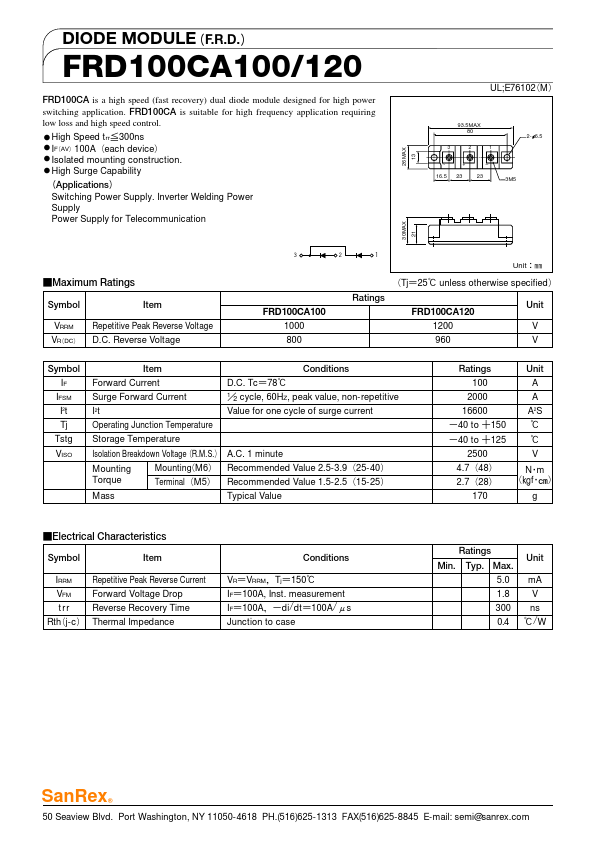

DIODE MODULE www.DataSheet4U.com F.R.D. FRD100CA100/120 UL;E76102 M 93.5MAX 80 26MAX 3 2 + – 1 FRD100CA is a high speed (fast recovery) dual diode module designed for high power switching application. FRD100CA is suitable for high frequency application requiring low loss and high speed control. High Speed trr 300ns IF AV 100A each device Isolated mounting construction. High Surge Capability Applications Switching Power Supply. Inverter Welding Power Supply Power Supply for Telecommunication 2- 6.5 13 ~ 16.5 23 23 3M5 30MAX 21 Unit Maximum Ratings Symbol VRRM VR DC Tj 25 Item Ratings FRD100CA100 1000 800 Conditions D.C.
