FRD100CA120 - (FRD100CA100 / FRD100CA120) DIODE MODULE

Download the FRD100CA120 datasheet PDF. This datasheet also covers the FRD100CA100 variant, as both devices belong to the same (frd100ca100 / frd100ca120) diode module family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FRD100CA100_SanRexCorporation.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number FRD100CA120
Manufacturer SanRex Corporation
File Size 124.04 KB
Description (FRD100CA100 / FRD100CA120) DIODE MODULE
Datasheet download datasheet FRD100CA120 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FRD12000 screened 8kV Cynergy3
FRD1212 DUAL OUTPUT/ 5 WATT Power-One
FRD1215 DUAL OUTPUT/ 5 WATT Power-One
FRD13000 fully screened 9kV Cynergy3
FRD DUAL OUTPUT/ 5 WATT Power-One

Other Datasheets by SanRex Corporation

Part Number Description
FRD100CA100 (FRD100CA100 / FRD100CA120) DIODE MODULE
FRD100BA60 DIODE MODULE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

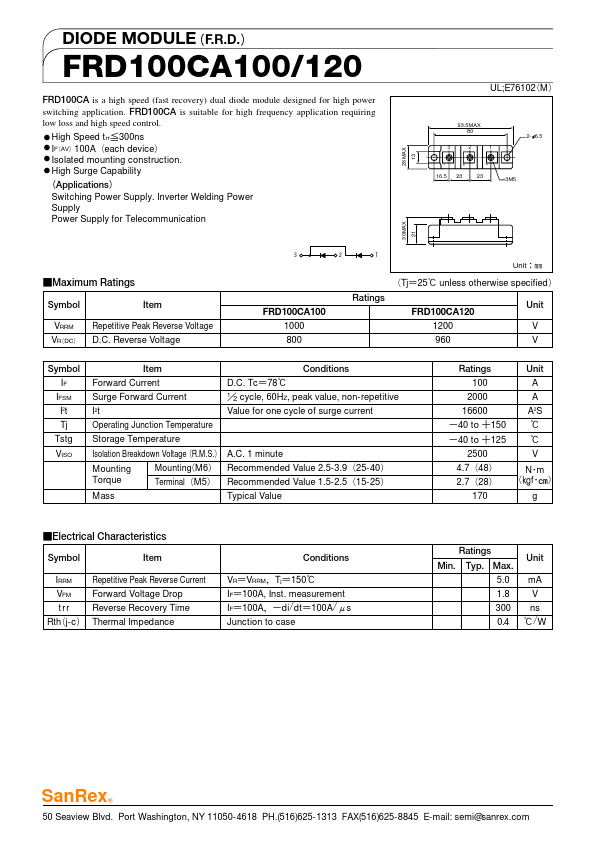

DIODE MODULE www.DataSheet4U.com F.R.D. FRD100CA100/120 UL;E76102 M 93.5MAX 80 26MAX 3 2 + – 1 FRD100CA is a high speed (fast recovery) dual diode module designed for high power switching application. FRD100CA is suitable for high frequency application requiring low loss and high speed control. High Speed trr 300ns IF AV 100A each device Isolated mounting construction. High Surge Capability Applications Switching Power Supply. Inverter Welding Power Supply Power Supply for Telecommunication 2- 6.5 13 ~ 16.5 23 23 3M5 30MAX 21 Unit Maximum Ratings Symbol VRRM VR DC Tj 25 Item Ratings FRD100CA100 1000 800 Conditions D.C.
