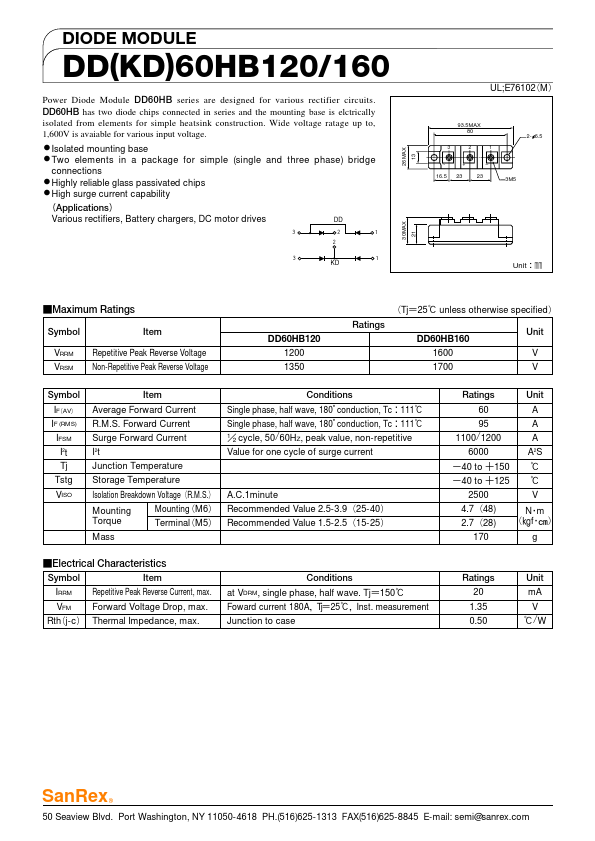

DIODE MODULE DD(KD)60HB120/160 Power Diode Module DD60HB series are designed for various rectifier circuits. DD60HB has two diode chips connected in series and the mounting base is elctrically isolated from elements for simple heatsink construction. Wide voltage ratage up to, 1,600V is avaiable for various input voltage. ˔ Isolated mounting base ˔ Two elements in a package for simple (single and three phase) bridge connections ˔ Highly reliable glass passivated chips ˔ High surge current capability ʢApplicationsʣ Various rectifiers, Battery chargers, DC motor drives %% ̏ ̎ ̍ ̎ ̏ ̍ ,% 30MAX 21 26MAX 13 UL;E76102ʢMʣ 93.5MAX 80 2-6.5 ~ + 16.5 23 - 23 3M5 Unitɿa ˙Maximum Ratings Symbol Item VRRM VRSM Repetitive Peak Reverse Voltage Non-Repetitive Peak Reverse...
