2SA1682 - PNP Epitaxial Planar Silicon Transistor

Key Features

  • High breakdown voltage (VCEO≥300V).
  • Small reverse transfer capacitance and excellent high frequency characteristic (Cre : 1.5pF typ).
  • Excellent DC current gain ratio (hFE ratio : 1.0 typ).
  • Adoption of FBET process. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Tempera.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1680 TRANSISTOR Toshiba Semiconductor
2SA1681 Silicon PNP Transistor Toshiba Semiconductor
2SA1600 Switching Power Transistor Shindengen Electric Mfg.Co.Ltd
2SA1600 SILICON POWER TRANSISTOR SavantIC
2SA1600 POWER TRANSISTOR Inchange Semiconductor

Other Datasheets by SANYO (now Panasonic)

Part Number Description
2SA1683 PNP Epitaxial Planar Silicon Transistors
2SA1685 PNP/NPN Epitaxial Planar Silicon Transistors
2SA1687 PNP/NPN Epitaxial Planar Silicon Transistors
2SA1688 PNP Epitaxial Planar Silicon Transistors
2SA1689 PNP Epitaxial Planar Silicon Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

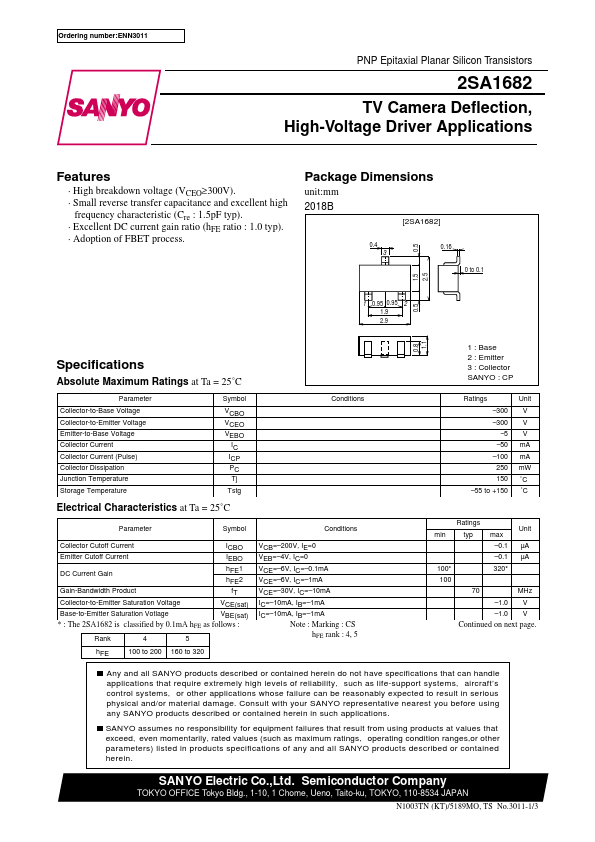

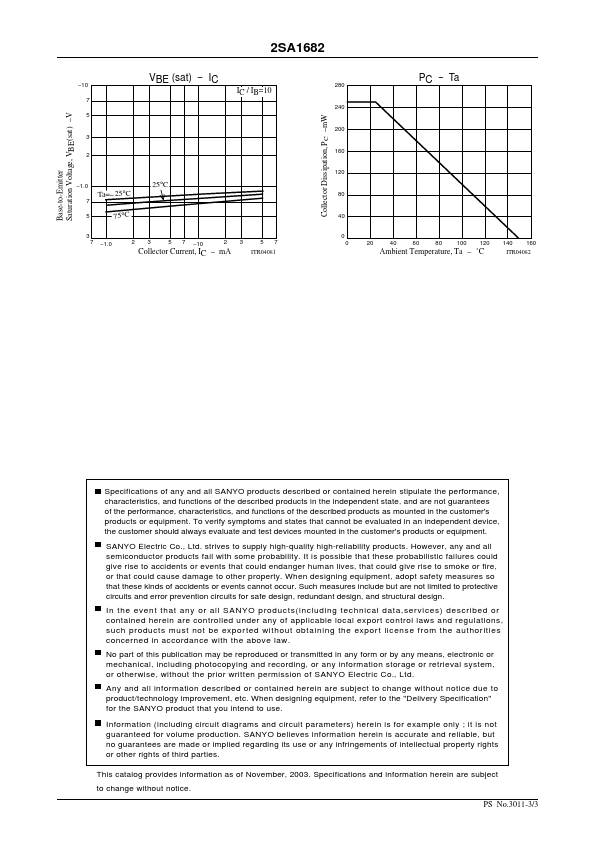

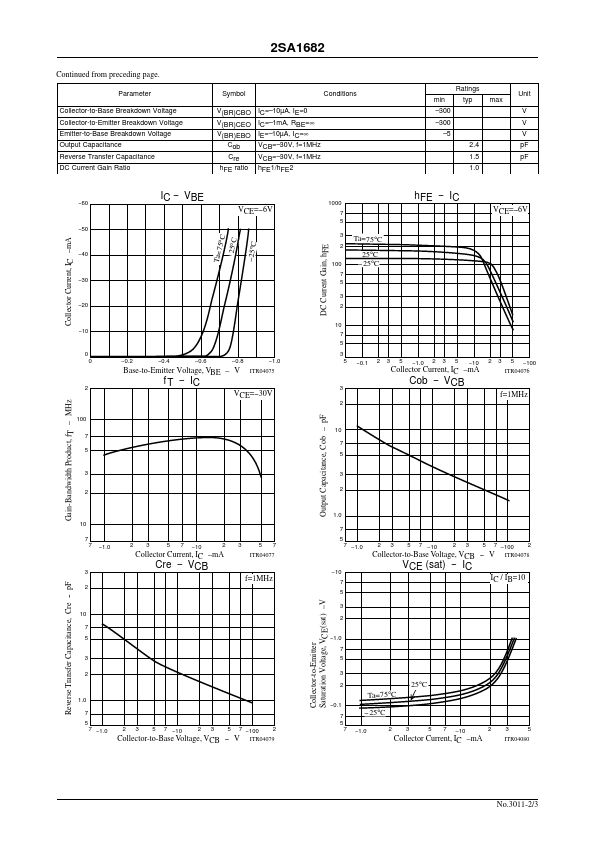

Ordering number : EN3011B 2SA1682 SANYO Semiconductors DATA SHEET 2SA1682 PNP Epitaxial Planar Silicon Transistor TV Camera Deflection, High-Voltage Driver Applications Features • High breakdown voltage (VCEO≥300V). • Small reverse transfer capacitance and excellent high frequency characteristic (Cre : 1.5pF typ). • Excellent DC current gain ratio (hFE ratio : 1.0 typ). • Adoption of FBET process.
