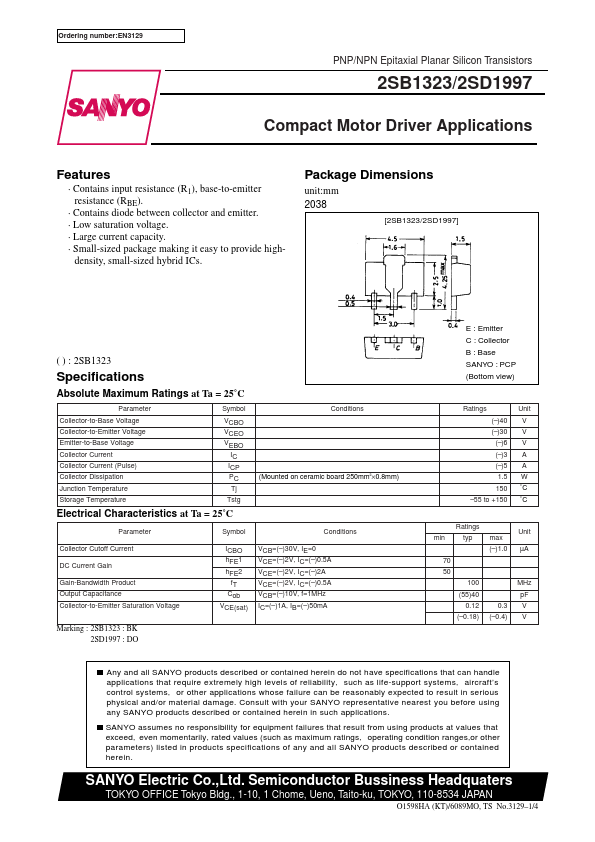

Datasheet Summary
Ordering number:EN3129
PNP/NPN Epitaxial Planar Silicon Transistors
2SB1323/2SD1997 pact Motor Driver Applications
Features
- Contains input resistance (R1), base-to-emitter resistance (RBE).
- Contains diode between collector and emitter.
- Low saturation voltage.
- Large current capacity.
- Small-sized package making it easy to provide high- density, small-sized hybrid ICs.
Package Dimensions unit:mm 2038
[2SB1323/2SD1997]
( ) : 2SB1323
Specifications...
