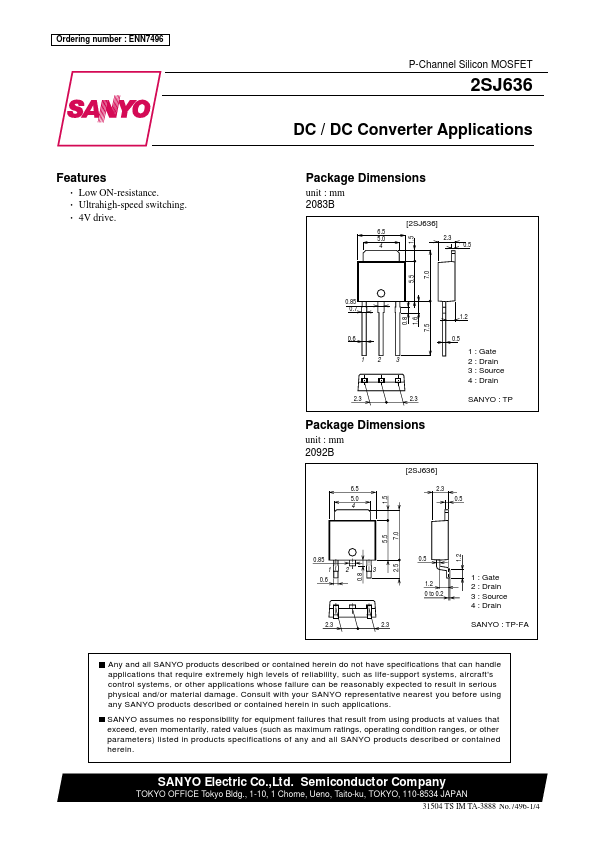

Datasheet Summary
Ordering number : ENN7496
Features
- Low ON-resistance.
- Ultrahigh-speed switching.
- 4V drive.
P-Channel Silicon MOSFET
DC / DC Converter Applications
Package Dimensions unit : mm 2083B
[2SJ636]
0.85 0.7
0.8 1.6 7.5
0.6 12 3
1 : Gate 2 : Drain 3 : Source 4 : Drain
SANYO : TP
Package Dimensions unit : mm 2092B
[2SJ636]
1.2 0 to 0.2
1 : Gate 2 : Drain 3 : Source 4 : Drain
SANYO : TP-FA
Any and all SANYO products described or contained herein do not have specifications that can handle applications that require extremely high...
