2SJ636 - 100V P-Channel MOSFET

VBsemi

Key Features

Halogen-free According to IEC 61249-2-21 Definition.
Trench Power MOSFET.
100 % Rg and UIS Tested.
Compliant to RoHS Directive 2002/95/EC.

2SJ636 100v p-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	2SJ636
Manufacturer	VBsemi
File Size	228.69 KB
Description	100V P-Channel MOSFET
Datasheet	2SJ636 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SJ636	P-Channel Silicon MOSFET	Sanyo
2SJ630	P-Channel Silicon MOSFET	Sanyo Semicon Device
2SJ632	P-Channel Silicon MOSFET	Sanyo Semicon Device
2SJ633	P-Channel Silicon MOSFET	Sanyo Semicon Device
2SJ634	P-Channel Silicon MOSFET	Sanyo Semicon Device

Other Datasheets by VBsemi

Part Number	Description
2SJ601	60V P-Channel MOSFET
2SJ602	60V P-Channel MOSFET
2SJ603	60V P-Channel MOSFET
2SJ604	60V P-Channel MOSFET
2SJ604-Z	60V P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

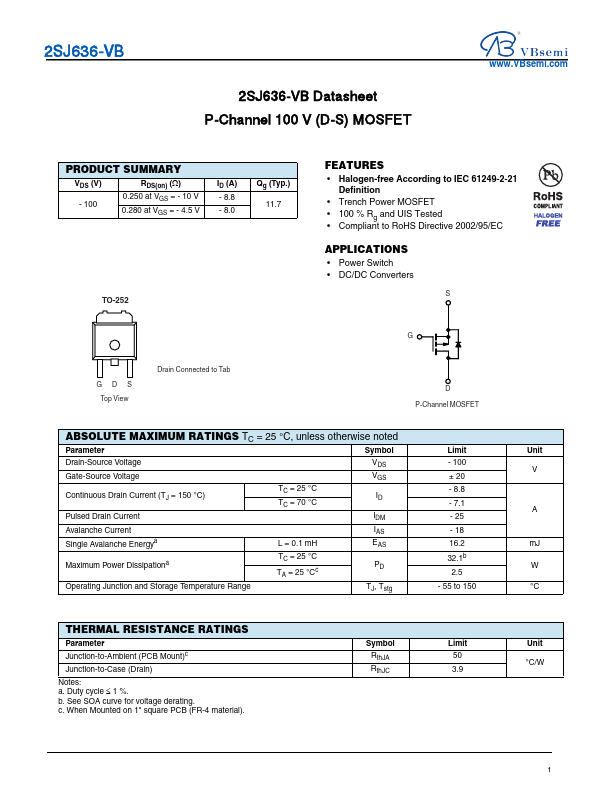

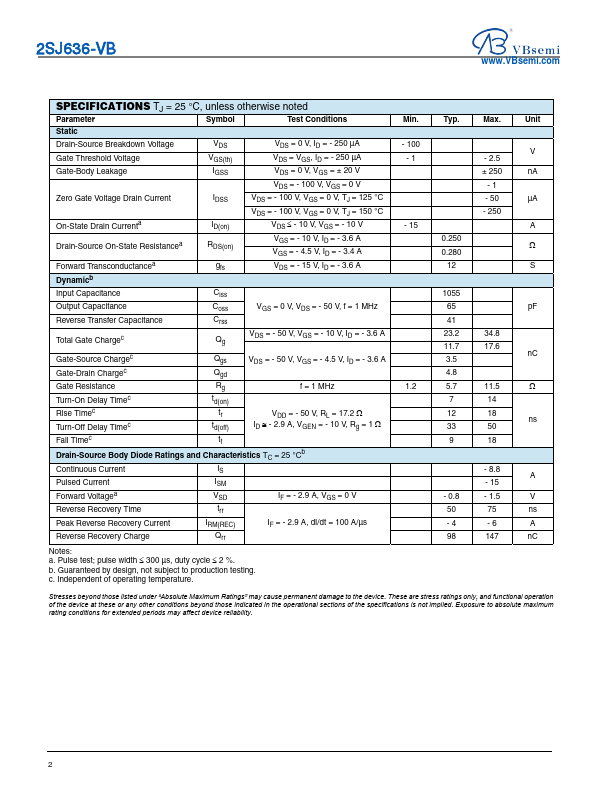

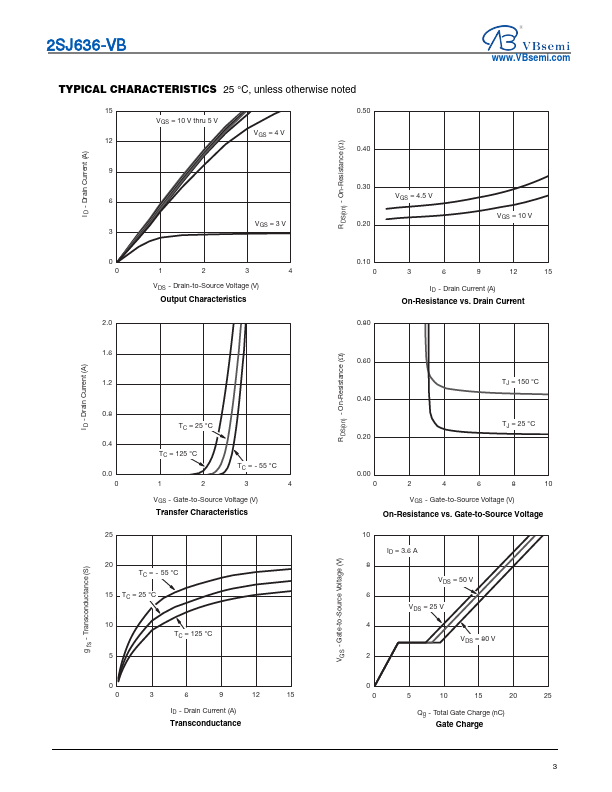

2SJ636-VB 2SJ636-VB Datasheet P-Channel 100 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 100 0.250 at VGS = - 10 V 0.280 at VGS = - 4.5 V ID (A) - 8.8 - 8.0 Qg (Typ.) 11.7 TO-252 FEATURES • Halogen-free According to IEC 61249-2-21 Definition • Trench Power MOSFET • 100 % Rg and UIS Tested • Compliant to RoHS Directive 2002/95/EC APPLICATIONS • Power Switch • DC/DC Converters S G GDS Top View Drain Connected to Tab D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS - 100 V VGS ± 20 Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current TC = 25 °C TC = 70 °C ID - 8.8 - 7.
