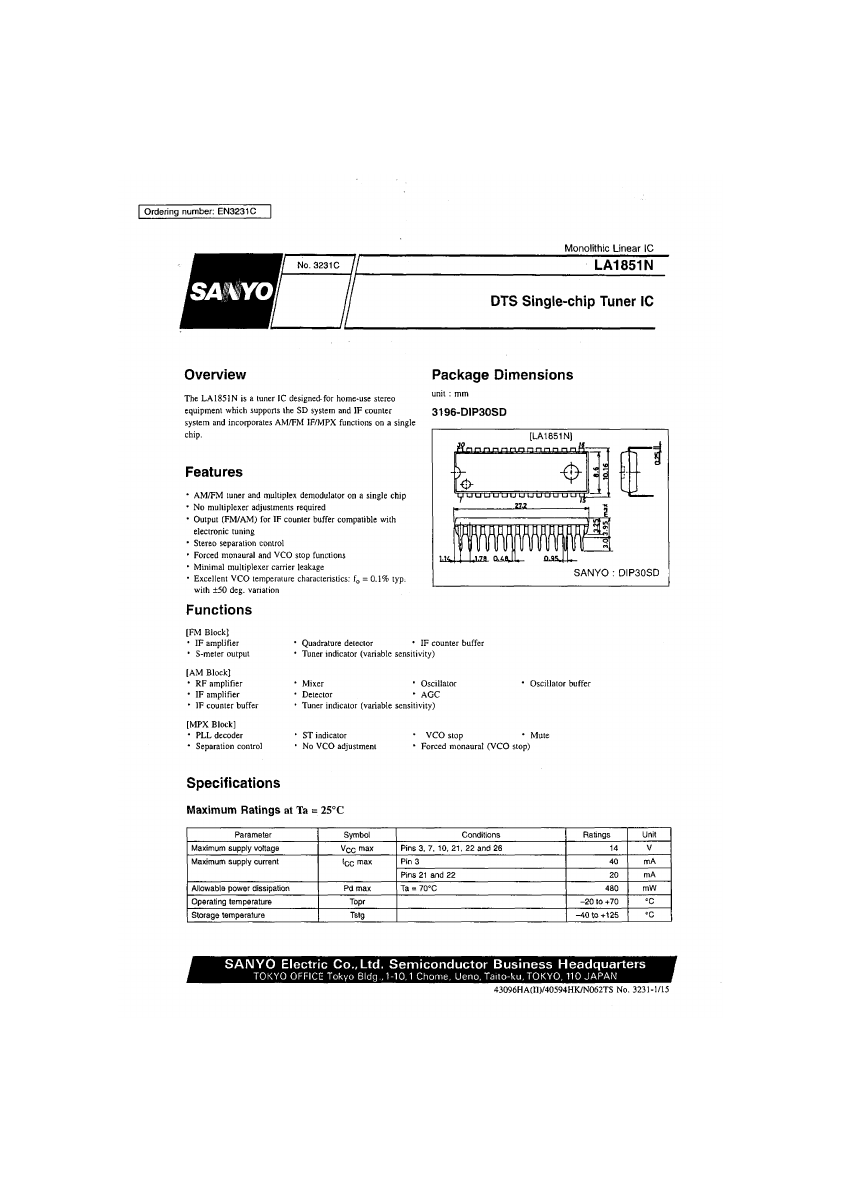

LA1851N
LA1851N is DTS Single-chip Tuner IC manufactured by SANYO.
Ordering number: EN3231C
SAffYOj
Monolithic Linear IC
DTS Single-chip Tuner IC
Overview
The LA 185IN is a tuner IC designed-for home-use stereo equipment which supports the SD system and IF counter system and incorporates AM/FM IF/MPX functions on a single chip.
Package Dimensions unit : mm 3196-DIP30SD
Features
- AM/FM tuner and multiplex demodulator on a single chip
- No multiplexer adjustments required
- Output (FM/AM) for IF counter buffer patible with electronic tuning
- Stereo separation control
- Forced monaural and VCO stop functions
- Minimal multiplexer carrier leakage
- Excellent VCO temperature characteristics: f0 = 0.1% typ: with ±50 deg. variation
Functions
[FM...
