LA4508 Datasheet Text
Ordering number:ENN1440E
Monolithic Linear IC
8.5W 2-Channel AF Power Amplifier

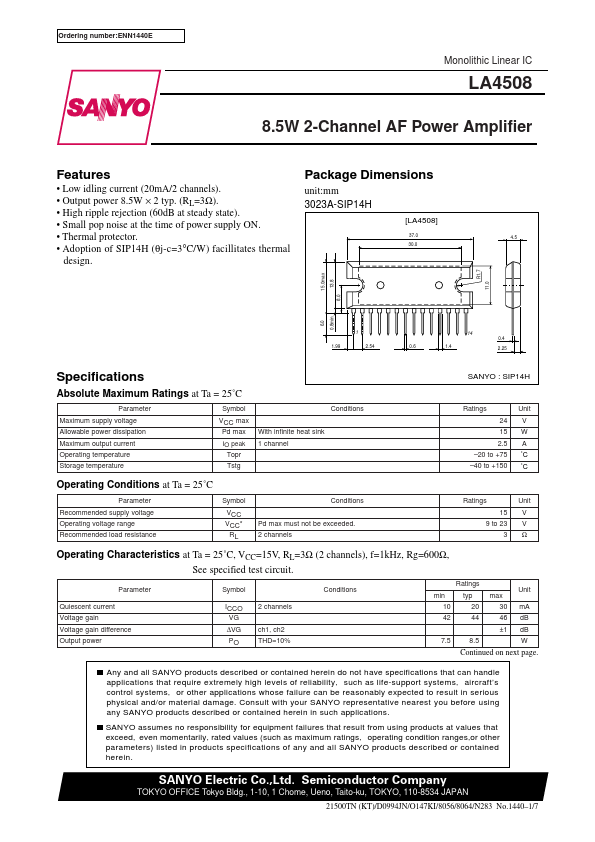

Features
Package Dimensions
- Low idling current (20mA/2 channels).
- Output power 8.5W × 2 typ. (RL=3Ω).
- High ripple rejection (60dB at steady state).
- Small pop noise at the time of power supply ON. unit:mm 3023A-SIP14H
[LA4508]
- Thermal protector.
- Adoption of SIP14H (θj-c=3°C/W) facillitates thermal
37.0
4.5
30.0 design.
R1.7 11.0
15.0max 13.8 8.0
6.0 0.8min
1
1.99
2.54
14...
