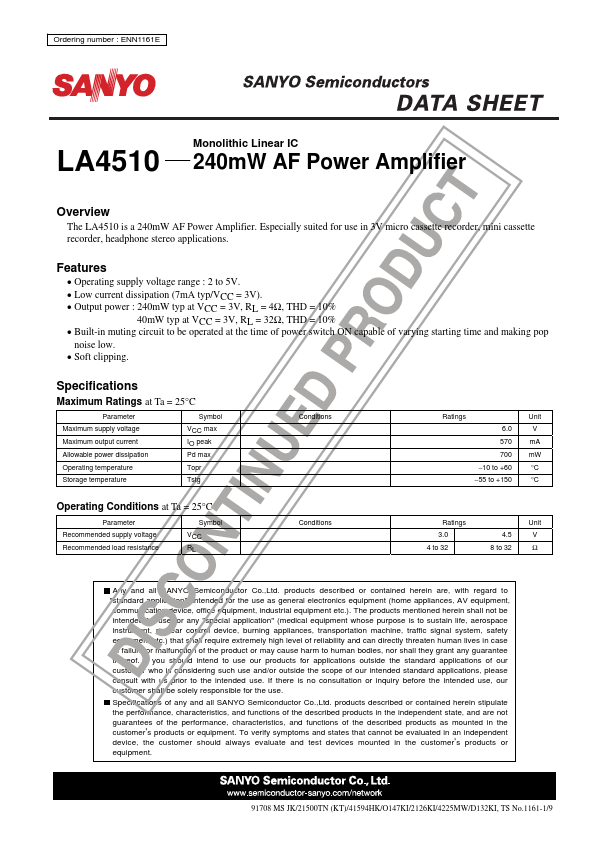

LA4510
LA4510 is 240mW AF Power Amplifier manufactured by SANYO.
Ordering number : ENN1161E
Monolithic Linear IC
LA4510 240mW AF Power Amplifier
Overview
The LA4510 is a 240mW AF Power Amplifier. Especially suited for use in 3V micro cassette recorder, mini cassette recorder, headphone stereo applications.
Features
- Operating supply voltage range : 2 to 5V.
- Low current dissipation (7mA typ/VCC = 3V).
- Output power : 240mW typ at VCC = 3V, RL = 4Ω, THD = 10%
40mW typ at VCC = 3V, RL = 32Ω, THD = 10%
- Built-in muting circuit to be operated at the time of power switch ON capable of varying starting time and making pop noise low.
- Soft clipping.
Specifications
Maximum Ratings at Ta = 25°C
Parameter Maximum supply voltage Maximum output current...
