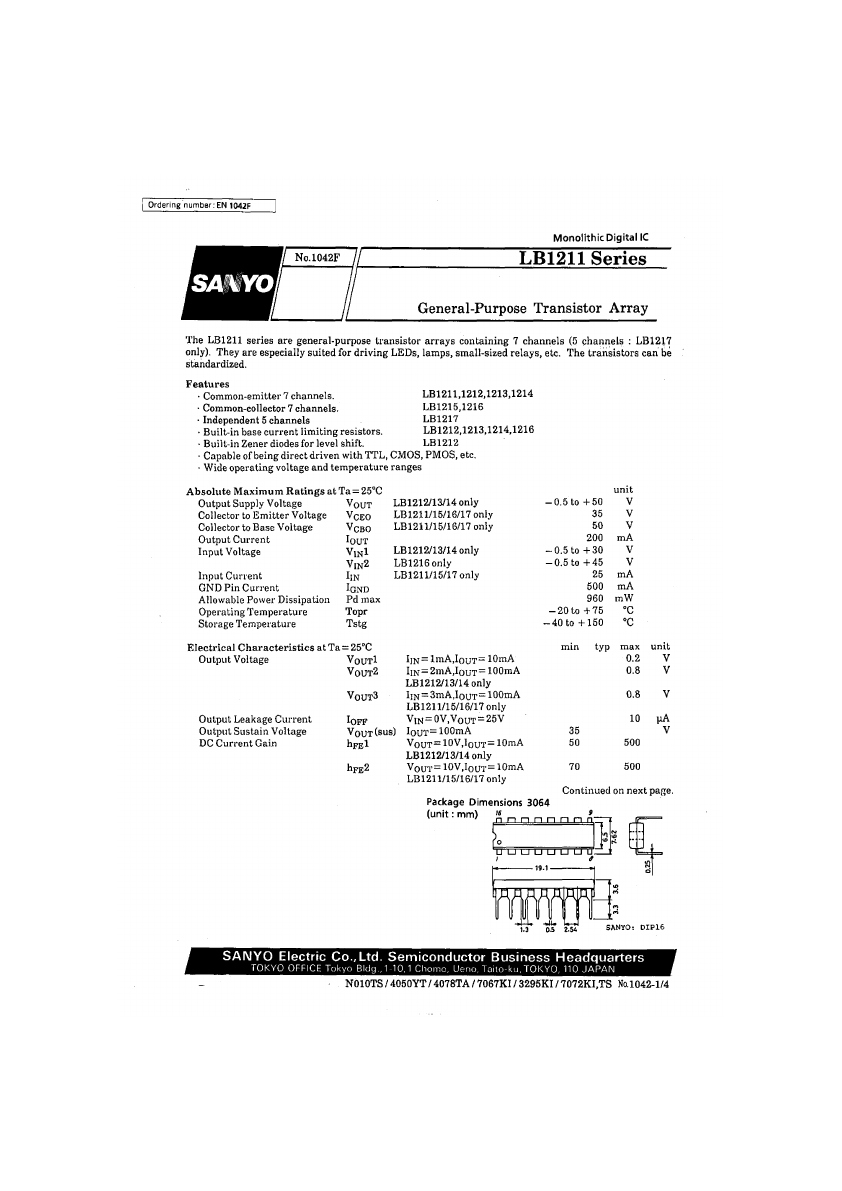

Ordering number:EN 1042F
Monolithic Digital IC
LB1211 Series
General-Purpose Transistor Array
The LB1211 series are general-purpose transistor arrays containing 7 channels (5 channels : LB1217 only). They are especially suited for driving LEDs, lamps, small-sized relays, etc. The transistors can be standardized.
Features
- mon-emitter 7 channels.
LB1211,1212,1213,1214
- mon-collector 7 channels.
- Independent 5 channels
- Built-in base current limiting resistors.
- Built-in Zener diodes for level shift.
LB1215,1216 LB1217 LB1212,1213,1214,1216
LB1212
- Capable of being direct driven with TTL, CMOS, PMOS, etc.
- Wide operating voltage and temperature...
