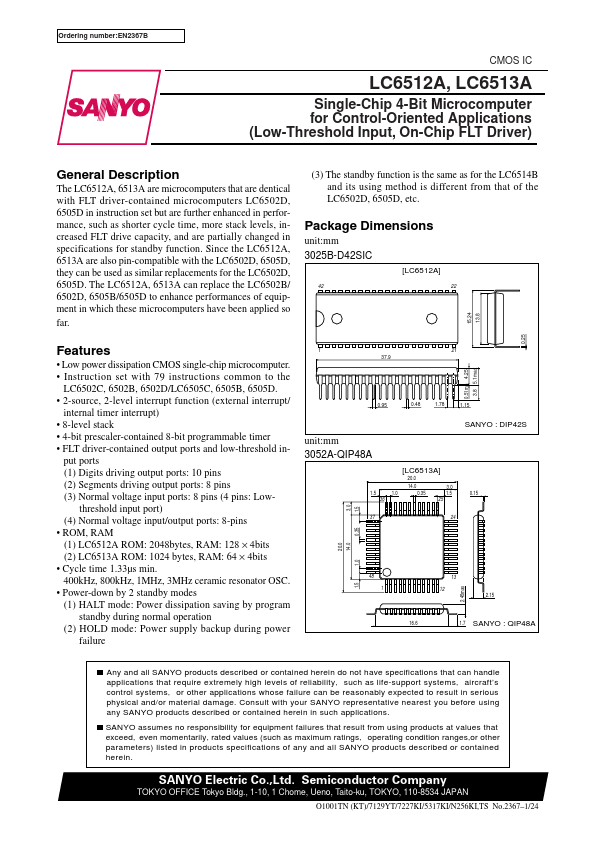

LC6513A Description
The LC6512A, 6513A are microputers that are dentical with FLT driver-contained microputers LC6502D, 6505D in instruction set but are further enhanced in performance, such as shorter cycle time, more stack levels, increased FLT drive capacity, and are partially changed in specifications for standby function. Since the LC6512A, 6513A are also pin-patible with the LC6502D, 6505D, they can be used as similar...
LC6513A Key Features
- Low power dissipation CMOS single-chip microputer
- Instruction set with 79 instructions mon to the
- 2-source, 2-level interrupt function (external interrupt/
- 8-level stack
- 4-bit prescaler-contained 8-bit programmable timer
- Cycle time 1.33µs min. 400kHz, 800kHz, 1MHz, 3MHz ceramic resonator OSC
- Power-down by 2 standby modes (1) HALT mode: Power dissipation saving by program
