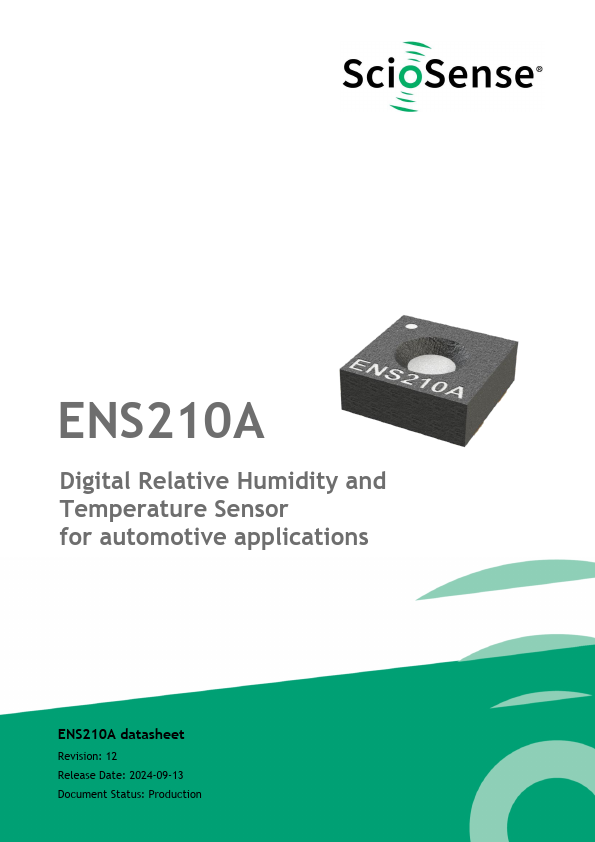

ENS210A
ENS210A is Digital Humidity and Temperature Sensors manufactured by ScioSense.

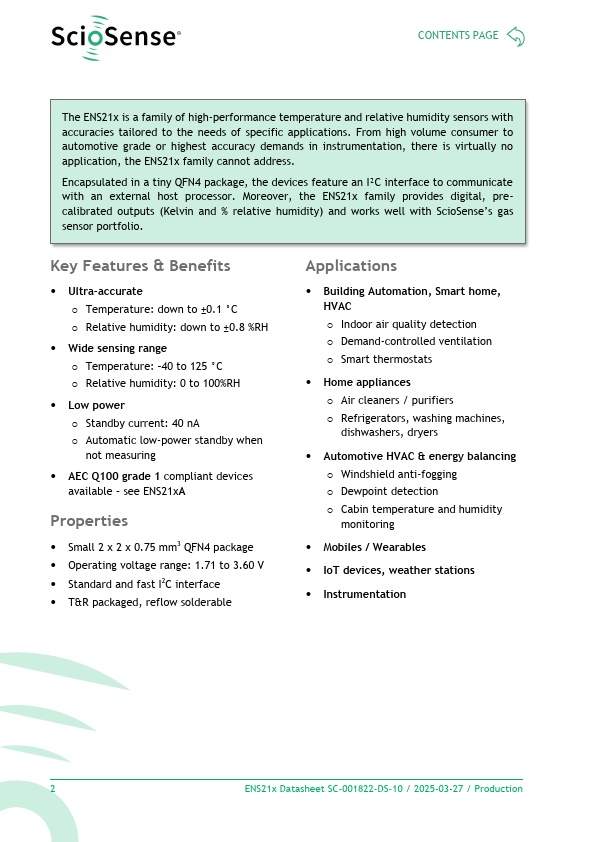

Features
& Benefits
- Ultra-accurate o Temperature: ±0.15°C, typ. o Relative humidity: ±2.0%RH, typ.
- Wide sensing range o Temperature:
- 40 to 125°C o Relative humidity: 0 to 100%RH
- Low power o Standby current: 40n A o Automatic low-power standby when not measuring
- AEC Q100 grade 1 pliant
Applications
- Automotive HVAC management & general energy balancing
- Windshield de-fogging
- Dewpoint detection
- Cabin temperature and humidity monitoring
Properties
- Small 2 x 2 x 0.75mm3 QFN4 package
- Operating voltage range: 1.71 to 3.60V
- Standard and fast I2C interface
- T&R packaged, reflow solderable
ENS210A Datasheet SC-001475-DS-12 / 2024-09-13 / Production

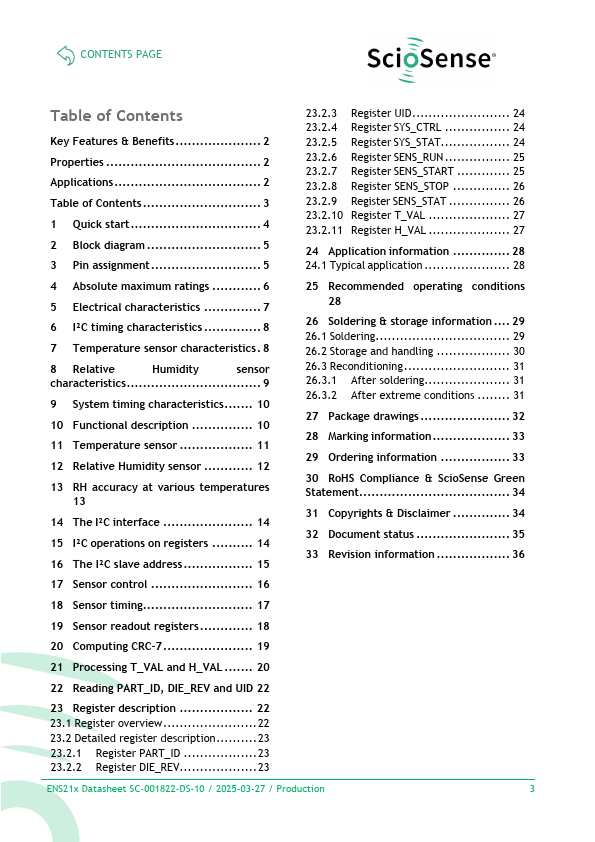

CONTENTS PAGE
Table of Contents
Key Features
& Benefits 2
Applications 2
Properties 2
Table of Contents 3
1 Block diagram 4
2 Pin assignment 4
3 Absolute maximum ratings 5
4 Electrical characteristics 6
5 I²C timing characteristics 6
6 Temperature sensor characteristics 7
7 Relative
Humidity sensor characteristics 8
8 System timing characteristics 9
9 Functional description
10 Temperature sensor 10
11 Relative Humidity sensor 11
12 RH accuracy at various temperatures...
