ENS212 - Digital Humidity and Temperature Sensors

This page provides the datasheet information for the ENS212, a member of the ENS210A Digital Humidity and Temperature Sensors family.

Datasheet Summary

Description

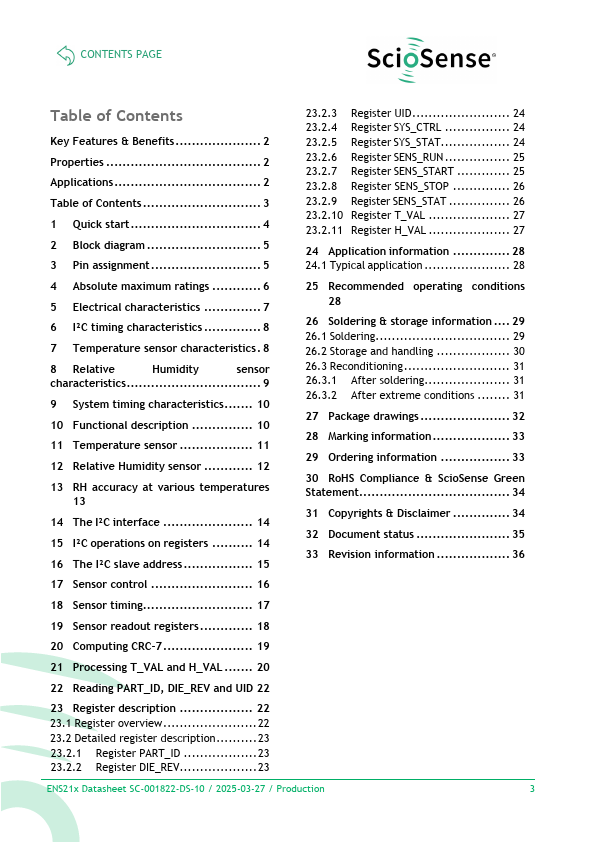

10 11 Temperature sensor 11 12 Relative Humidity sensor 12 13 RH accuracy at various temperatures 13 14 The I²C interface 14 15 I²C operations on registers 14 16 The I²C slave address 15 25 Recommended operating conditions 28 26 Soldering & storage information 29 26.1 Soldering 29 26.2

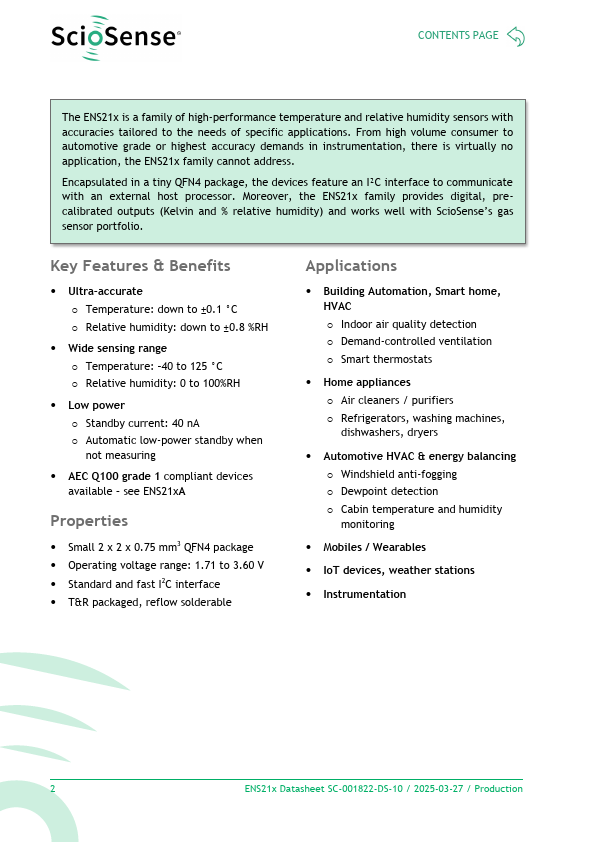

Features

  • & Benefits.
  • Ultra-accurate o Temperature: down to ±0.1 °C o Relative humidity: down to ±0.8 %RH.
  • Wide sensing range o Temperature:.
  • 40 to 125 °C o Relative humidity: 0 to 100%RH.
  • Low power o Standby current: 40 nA o Automatic low-power standby when not measuring.
  • AEC Q100 grade 1 compliant devices available.
  • see ENS21xA Properties.
  • Small 2 x 2 x 0.75 mm3 QFN4 package.
  • Operating voltage range: 1.71 to 3.60 V.
  • Standard.

📥 Download Datasheet

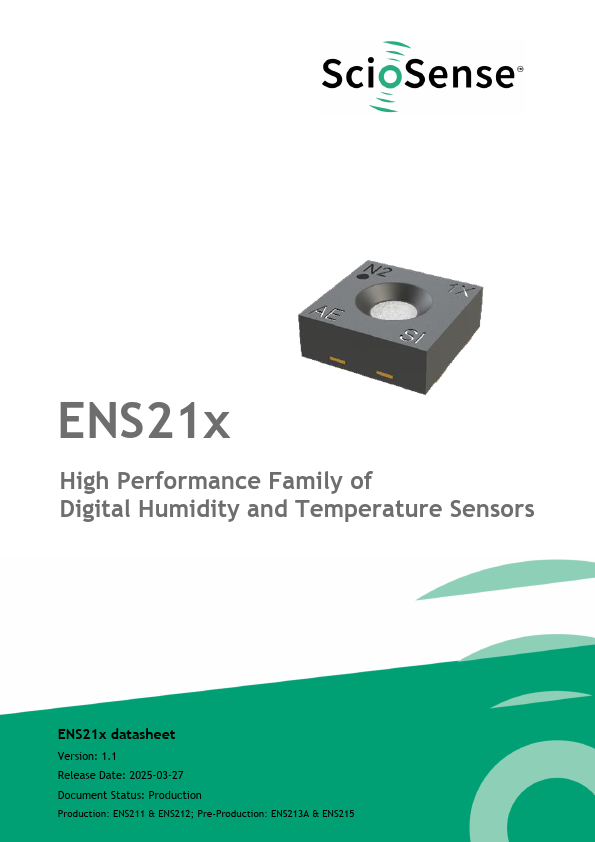

Datasheet preview – ENS212

Datasheet Details

Part number ENS212
Manufacturer ScioSense
File Size 1.60 MB
Description Digital Humidity and Temperature Sensors
Datasheet download datasheet ENS212 Datasheet
Additional preview pages of the ENS212 datasheet.

📁 Similar Datasheet

Other Datasheets by ScioSense
  • ENS210 - Relative Humidity and Temperature Sensor
  • ENS210A - Digital Humidity and Temperature Sensors
  • ENS211 - Digital Humidity and Temperature Sensors
  • ENS213A - Digital Humidity and Temperature Sensors
  • ENS215 - Digital Humidity and Temperature Sensors
  • ENS130 - CO Sensor
  • ENS160 - Digital Metal Oxide Multi-Gas Sensor
  • ENS190 - NDIR CO2 Sensor

Full PDF Text Transcription

Click to expand full text
ENS21x High Performance Family of Digital Humidity and Temperature Sensors ENS21x datasheet Version: 1.1 Release Date: 2025-03-27 Document Status: Production Production: ENS211 & ENS212; Pre-Production: ENS213A & ENS215 CONTENTS PAGE The ENS21x is a family of high-performance temperature and relative humidity sensors with accuracies tailored to the needs of specific applications. From high volume consumer to automotive grade or highest accuracy demands in instrumentation, there is virtually no application, the ENS21x family cannot address. Encapsulated in a tiny QFN4 package, the devices feature an I²C interface to communicate with an external host processor.
