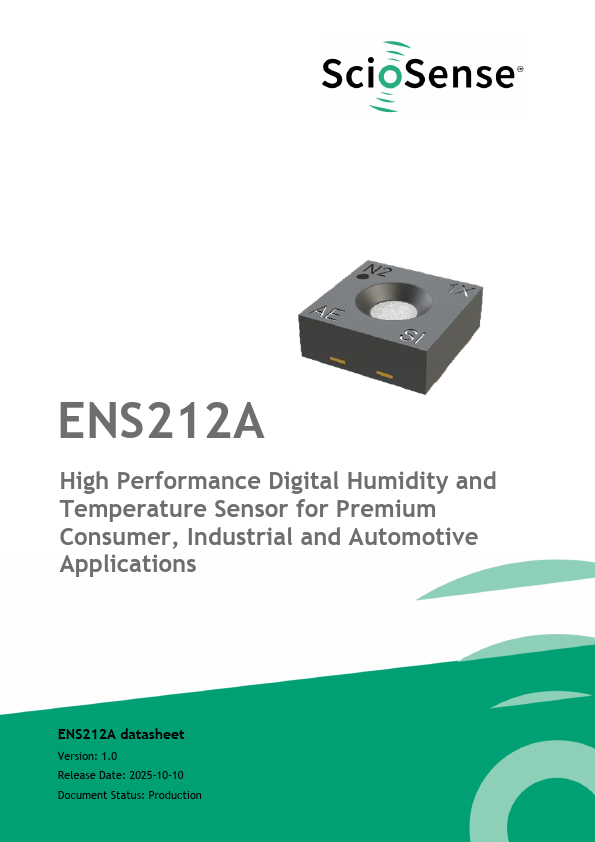

ENS212A

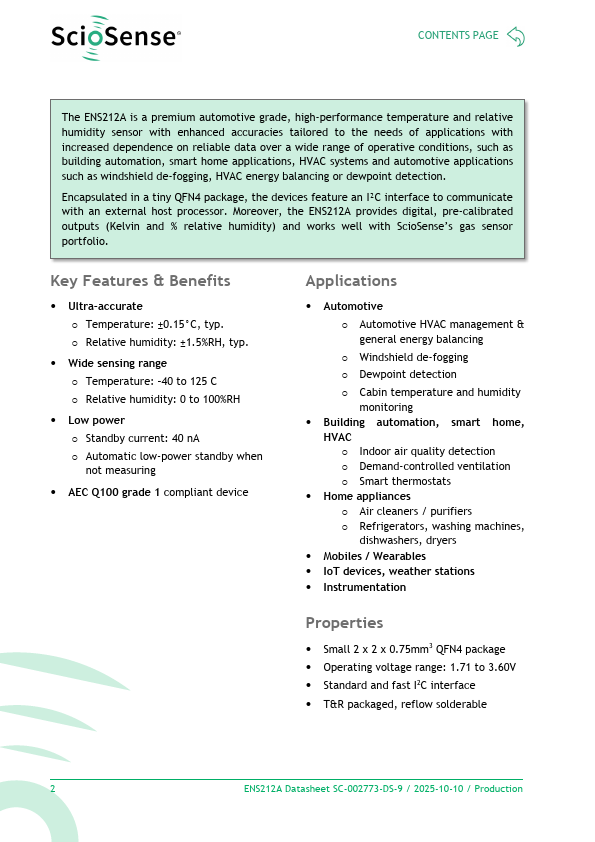

ENS212A is High Performance Digital Humidity and Temperature Sensor manufactured by ScioSense.
feature an I²C interface to municate with an external host processor. Moreover, the ENS212A provides digital, pre-calibrated outputs (Kelvin and % relative humidity) and works well with Scio Sense’s gas sensor portfolio.
Key Features
& Benefits
- Ultra-accurate o Temperature: ±0.15°C, typ. o Relative humidity: ±1.5%RH, typ.
- Wide sensing range o Temperature:
- 40 to 125 C o Relative humidity: 0 to 100%RH
- Low power o Standby current: 40 n A o Automatic low-power standby when not measuring
- AEC Q100 grade 1 pliant device
Applications
- Automotive o Automotive HVAC management & general energy balancing o Windshield de-fogging o Dewpoint detection o Cabin temperature and humidity monitoring
- Building automation, smart home, HVAC o Indoor air quality detection o Demand-controlled ventilation o Smart thermostats
- Home appliances o Air cleaners / purifiers o Refrigerators, washing machines, dishwashers, dryers
- Mobiles / Wearables
- Io T devices, weather stations
- Instrumentation
Properties
- Small 2 x 2 x 0.75mm3 QFN4 package
- Operating voltage range: 1.71 to 3.60V
- Standard and fast I2C interface
- T&R packaged, reflow solderable
ENS212A Datasheet SC-002773-DS-9 / 2025-10-10 / Production

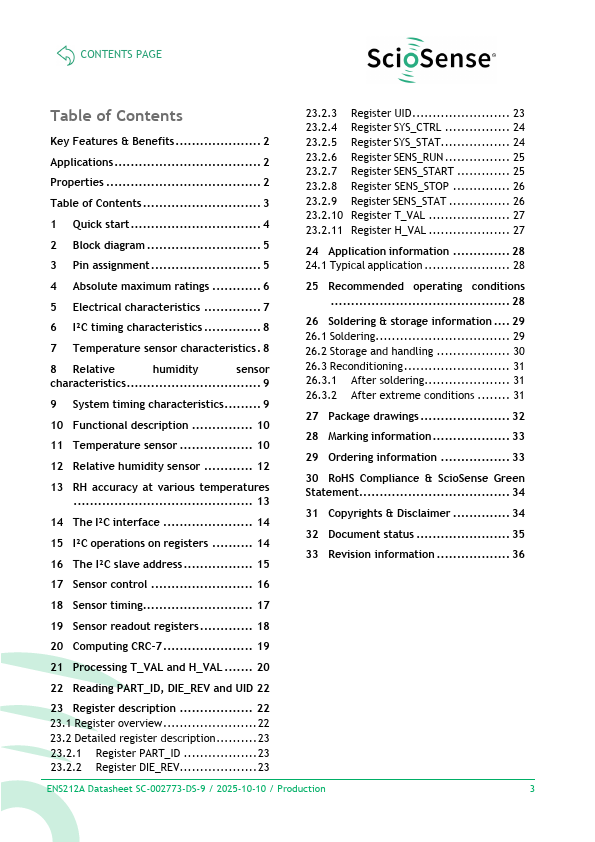

CONTENTS PAGE
Table of Contents
Key Features
& Benefits 2 Applications 2 Properties 2 Table of Contents 3 1 Quick start 4 2 Block diagram 5 3 Pin assignment 5
23.2.3 Register UID 23 23.2.4 Register SYS_CTRL 24 23.2.5 Register SYS_STAT 24 23.2.6 Register SENS_RUN 25 23.2.7 Register SENS_START 25 23.2.8 Register SENS_STOP 26 23.2.9 Register SENS_STAT 26 23.2.10 Register T_VAL 27 23.2.11 Register H_VAL...
