2SD1819A - NPN Silicon General Purpose Transistor

Datasheet Summary

Features

z z z Dim A L 3 Min 1.800 1.150 0.800 0.300 1.200 0.000 0.100 0.350 0.590 2.000 0.280 Max 2.200 1.350 1.000 0.400 1.400 0.100 0.250 0.500 0.720 2.400 0.420 High foward current transfer ratio hFE. Low collector to emitter saturation voltage VCE(sat). A B C B S 2 Complementary to 2SB1218A 1 Top View D G H J.

SeCoS

📥 Download Datasheet

Datasheet Details

Part number	2SD1819A
Manufacturer	SeCoS
File Size	165.10 KB
Description	NPN Silicon General Purpose Transistor
Datasheet	2SD1819A Datasheet

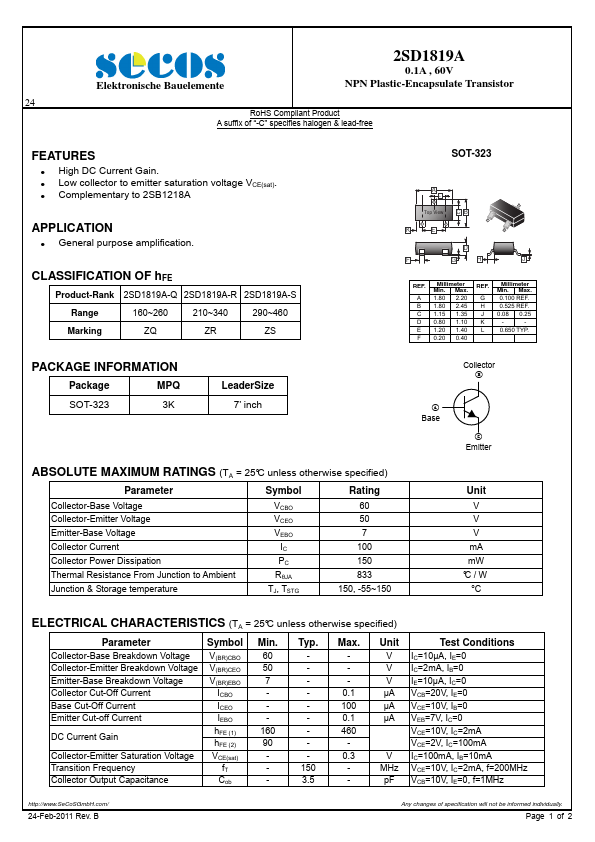

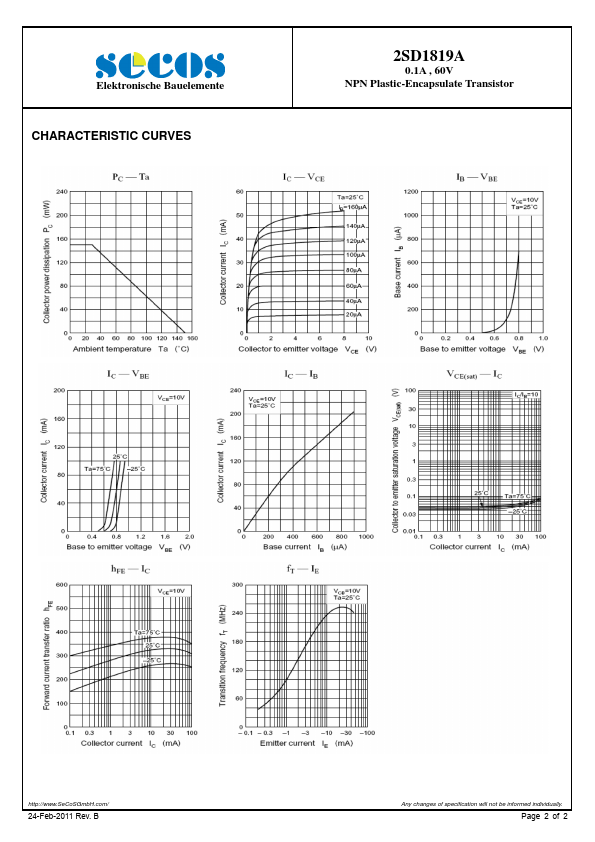

Additional preview pages of the 2SD1819A datasheet.
