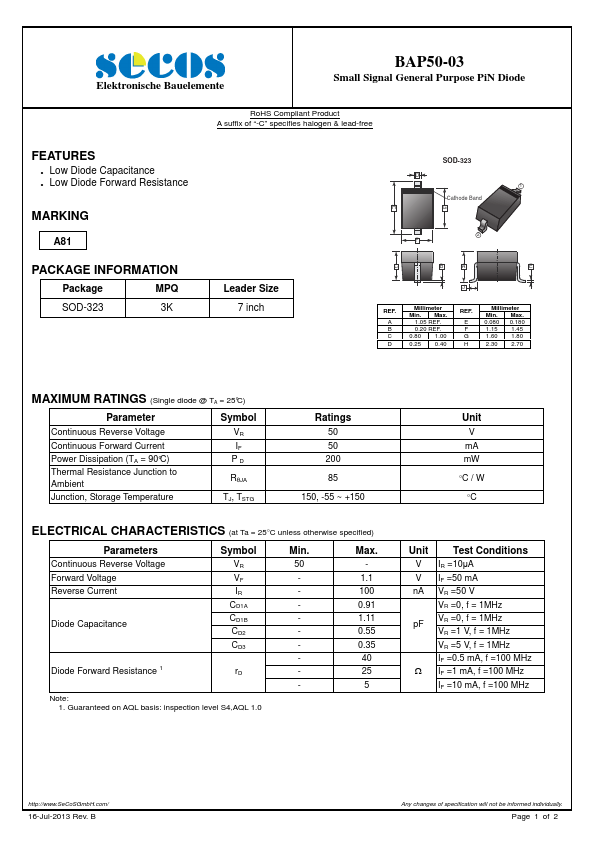

BAP50-03
BAP50-03 is Small Signal General Purpose PiN Diode manufactured by SeCoS Halbleitertechnologie GmbH.
Elektronische Bauelemente
Small Signal General Purpose PiN Diode
RoHS pliant Product A suffix of “-C” specifies halogen & lead-free
Features
Low Diode Capacitance Low Diode Forward Resistance
MARKING
A81
PACKAGE INFORMATION
Package
SOD-323
3K
Leader Size 7 inch
SOD-323
D 1
Cathode Band
2 F
REF.
Millimeter Min. Max.
1.05 REF. 0.20 REF. 0.80 1.00
0.25 0.40
REF.
Millimeter Min. Max. 0.080 0.180 1.15 1.45 1.60 1.80
2.30 2.70
MAXIMUM RATINGS (Single diode @ TA = 25°C)
Parameter
Symbol
Continuous Reverse Voltage Continuous Forward Current Power Dissipation (TA = 90°C) Thermal Resistance Junction to Ambient Junction,...
