1SS226 Datasheet | Semiware Semiconductor

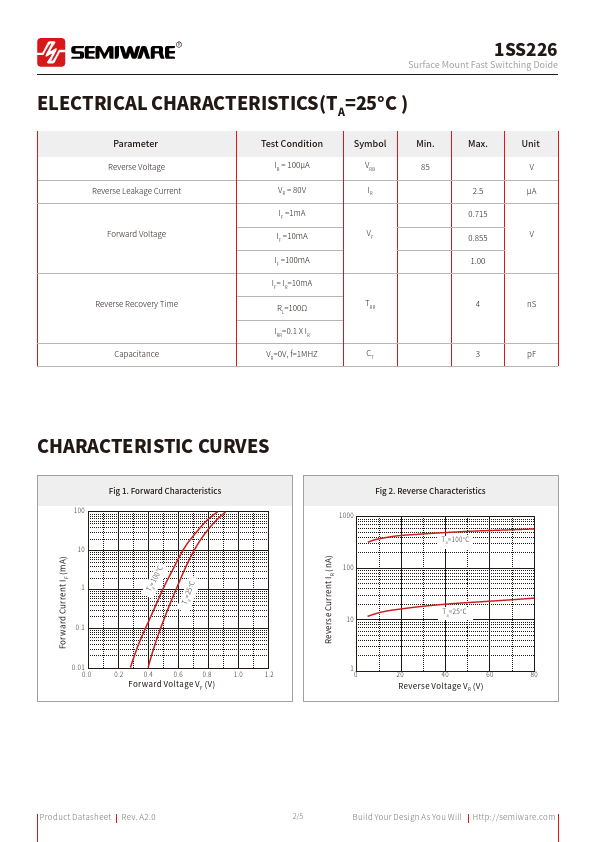

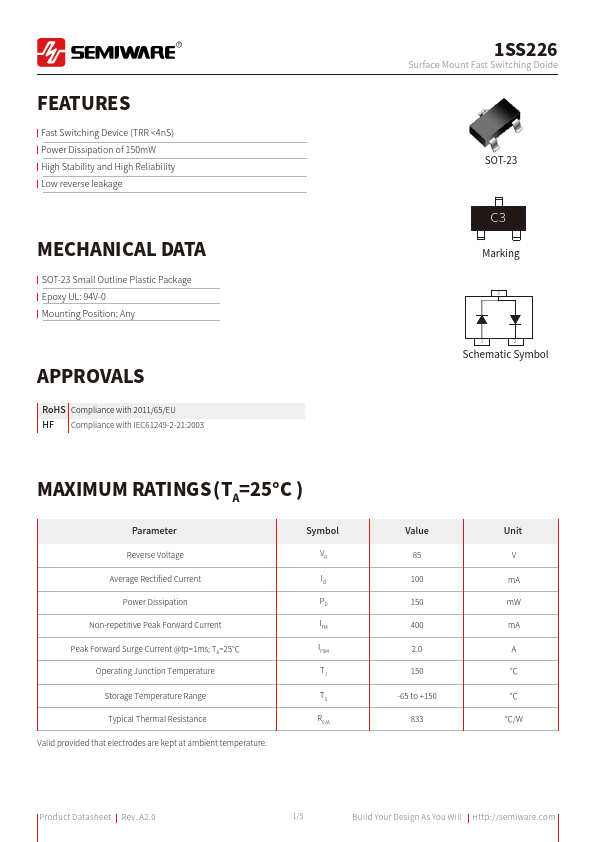

Features Fast Switching Device (TRR <4n S) Power Dissipation of 150m W High Stability and High Reliability Low reverse leakage MECHANICAL DATA SOT-23 Small Outline Plastic Package Epoxy UL: 94V-0 Mounting Position: Any APPROVALS Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003 MAXIMUM RATINGS (TA=25°C ) Parameter Reverse Voltage Average Rectified Current Power Dissipation Non-repetitive Peak Forward Current Peak Forward Surge Current @tp=1ms; TA=25℃ Operating Junction Temperature Storage Temperature Range Typical Thermal Resistance Valid provided that electrodes are kept at ambient temperature. Symbol VR IO PD IFM IFSM TJ TS RθJA Surface Mount Fast Switching Doide SOT-23 C3 Marking Schematic Symbol Value 85 100 150 400 2.0 150 -65 to +150 833 Unit V m A m W m A A ℃ ℃ ℃/W Product Datasheet Rev. A2.0 1/5 Build Your Design As You Will Http://semiware. Surface Mount Fast Switching Doide ELECTRICAL CHARACTERISTICS(TA=25°C ) Parameter Reverse Voltage Reverse Leakage Current Forward Voltage Reverse Recovery Time Capacitance Test Condition IB = 100μA VR = 80V IF =1m A IF =10m A IF =100m A IF= IR=10m A RL=100Ω IRR=0.1 X IR VR=0V, f=1MHZ Symbol VRB IR VF TRR CT Min....
