1SS355 Datasheet | Semiware Semiconductor

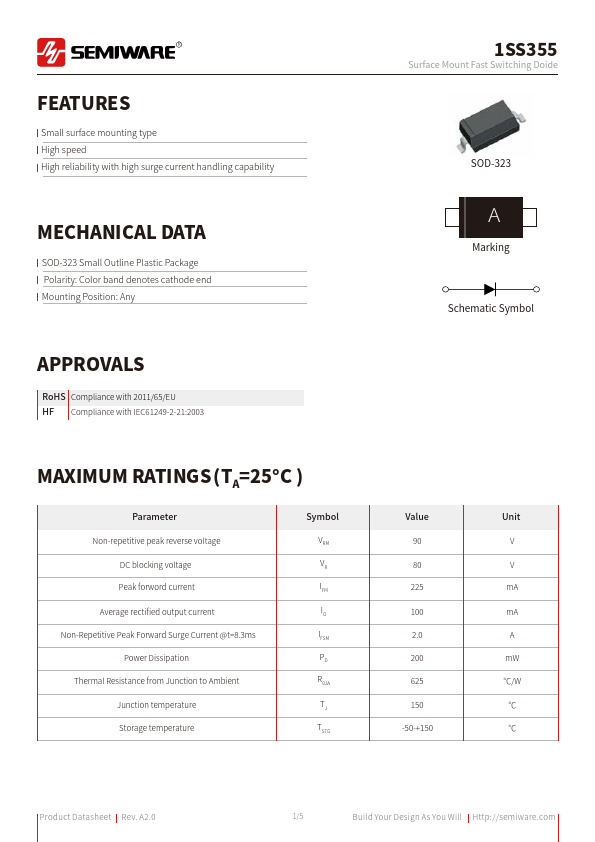

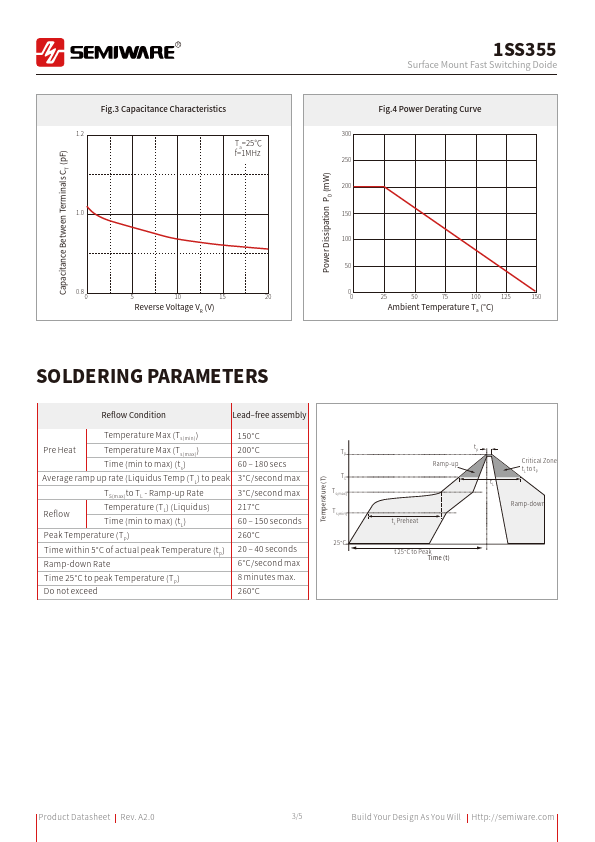

FEATURES Small surface mounting type High speed High reliability with high surge current handling capability MECHANICAL DATA SOD-323 Small Outline Plastic Package Polarity: Color band denotes cathode end Mounting Position: Any APPROVALS Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003 MAXIMUM RATINGS (TA=25°C ) Parameter Non-repetitive peak reverse voltage DC blocking voltage Peak forword current Average rectified output current Non-Repetitive Peak Forward Surge Current @t=8.3ms Power Dissipation Thermal Resistance from Junction to Ambient Junction temperature Storage temperature Symbol VRM VR IFM IO IFSM PD RθJA TJ TSTG Surface Mount Fast Switching Doide SOD-323 Marking Schematic Symbol Value 90 80 225 100 2.0 200 625 150 -50-+150 Unit V V m A m A A m W ℃/W ℃ ℃ Product Datasheet Rev. A2.0 1/5 Build Your Design As You Will Http://semiware. Surface Mount Fast Switching Doide ELECTRICAL CHARACTERISTICS(TA=25°C ) Parameter Forward voltage Reverse current Capacitance between terminals Reverse recovery time Symbol VF IR CT trr Test Conditions IF=100m A VR=80V VR=0.5V,f=1MHz IF=10m A ,VR=6V,RL=100Ω Min. Typ. Max. Unit µA 3 p F 4 ns Forward Current IF (m A) Ta=100°C Ta=25°C Reverse Current IR(n A) CHARACTERISTIC CURVES Fig.1 Forward Characteristics...
