2SB772 - PNP Plastic-Encapsulate Transistor

Semiware

Key Features

High current output up to 3A Low saturation voltage Complement to 2SD882 Power Dissipation:1.25W.

2SB772 pnp plastic-encapsulate transistor by Semiware - Datasheet Preview

Datasheet Details

Part number	2SB772
Manufacturer	Semiware
File Size	123.11 KB
Description	PNP Plastic-Encapsulate Transistor
Datasheet	2SB772 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SB772	MEDIUM POWER LOW-VOLTAGE TRANSISTOR	Unisonic Technologies
2SB772	PNP SILICON POWER TRANSISTOR	NEC
2SB772	PNP MEDIUM POWER TRANSISTOR	ST Microelectronics
2SB772	Plastic Encapsulate Transistors	SeCoS
2SB772	Silicon PNP Power Transistors	Inchange Semiconductor

Other Datasheets by Semiware

Part Number	Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

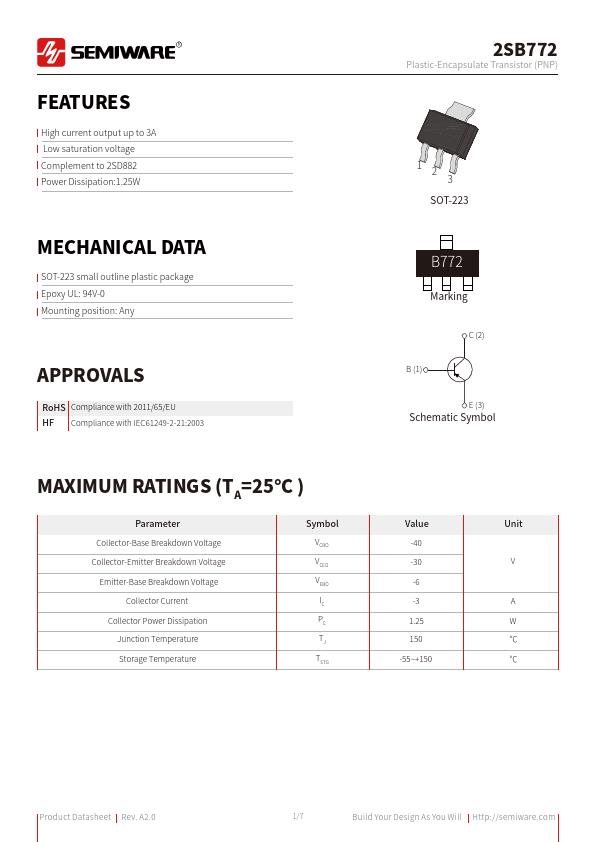

R FEATURES High current output up to 3A Low saturation voltage Complement to 2SD882 Power Dissipation:1.25W MECHANICAL DATA SOT-223 small outline plastic package Epoxy UL: 94V-0 Mounting position: Any APPROVALS RoHS Compliance with 2011/65/EU HF Compliance with IEC61249-2-21:2003 MAXIMUM RATINGS (TA=25°C ) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC PC TJ TSTG 2SB772 Plastic-Encapsulate Transistor (PNP) 12 3 SOT-223 B772 Marking C (2) B (1) E (3) Schematic Symbol Value -40 -30 -6 -3 1.25 150 -55~+150 Unit V A W ℃ ℃ Product Datasheet Rev. A2.0 1/7 Build Your Design As You Will Http://semiware.
