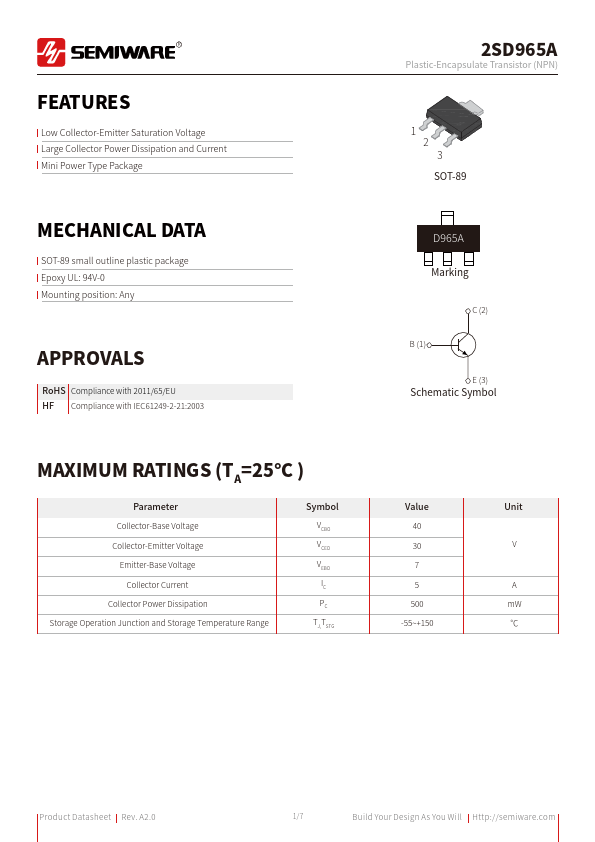

2SD965A
FEATURES
Low Collector-Emitter Saturation Voltage Large Collector Power Dissipation and Current Mini Power Type Package
MECHANICAL DATA
SOT-89 small outline plastic package Epoxy UL: 94V-0 Mounting position: Any
APPROVALS
Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003
MAXIMUM RATINGS (TA=25°C )
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage
Collector Current Collector Power Dissipation Storage Operation Junction and Storage Temperature Range
Symbol VCBO VCEO VEBO IC PC TJ,TSTG
Plastic-Encapsulate Transistor (NPN)
1 2 3 SOT-89
D965A Marking
C (2) B (1)
E (3)
Schematic Symbol
Value 40 30 7 5 500
-55~+150
Unit
A m W ℃
Product Datasheet Rev. A2.0
1/7
Build Your Design As You Will Http://semiware.
Plastic-Encapsulate Transistor (NPN)

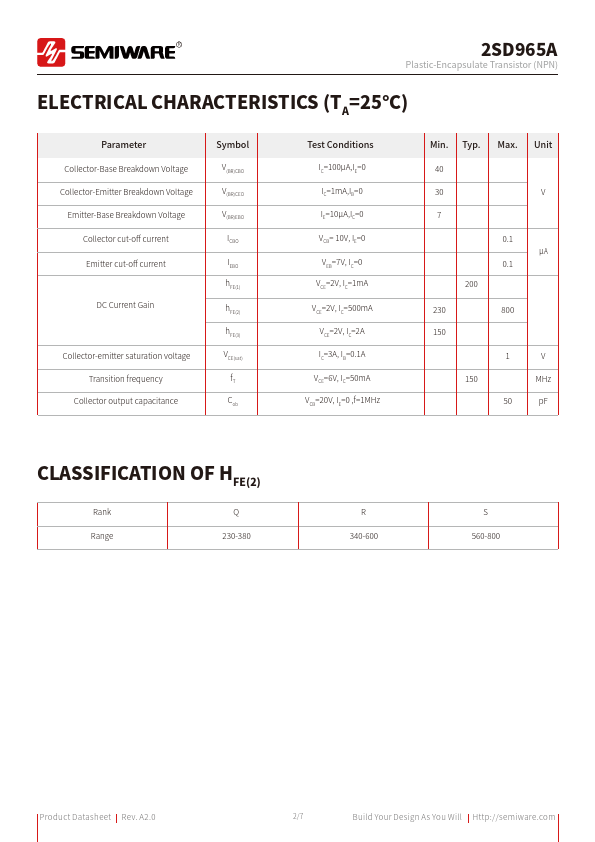

ELECTRICAL CHARACTERISTICS (TA=25°C)
Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage
Collector cut-off current...
