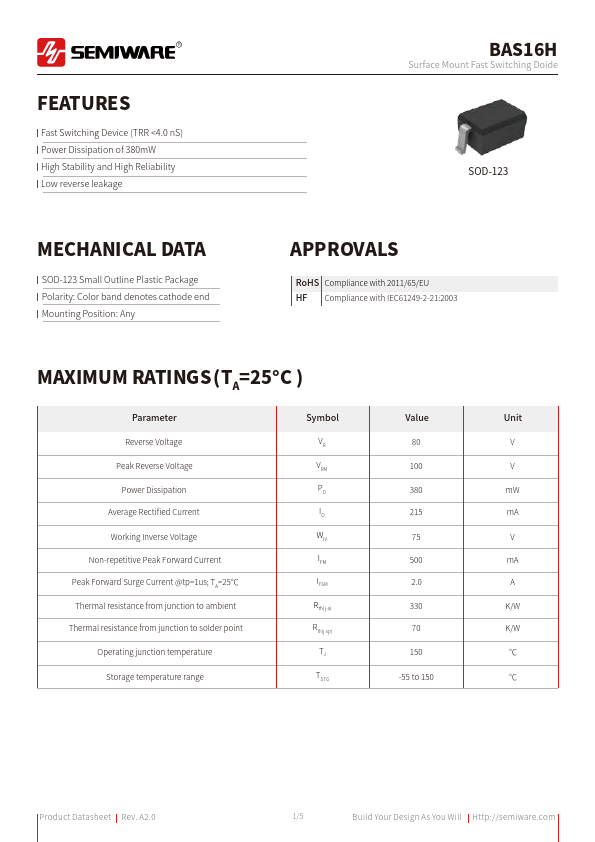

BAS16H
FEATURES
Fast Switching Device (TRR <4.0 n S) Power Dissipation of 380m W High Stability and High Reliability Low reverse leakage
Surface Mount Fast Switching Doide
SOD-123
MECHANICAL DATA
SOD-123 Small Outline Plastic Package Polarity: Color band denotes cathode end Mounting Position: Any
APPROVALS
Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003
MAXIMUM RATINGS (TA=25°C )
Parameter Reverse Voltage Peak Reverse Voltage Power Dissipation Average Rectified Current Working Inverse Voltage Non-repetitive Peak Forward Current Peak Forward Surge Current @tp=1us; TA=25℃ Thermal resistance from junction to ambient Thermal resistance from junction to solder point Operating junction temperature Storage temperature range
Symbol VR VRM PD IO WIV IFM IFSM
Rth( j-a) Rth(j-sp)
TJ TSTG
Value 80 100 380 215 75 500 2.0 330 70 150
-55 to 150
Unit V V m W m A V m A A K/W K/W ℃ ℃
Product Datasheet Rev. A2.0
1/5
