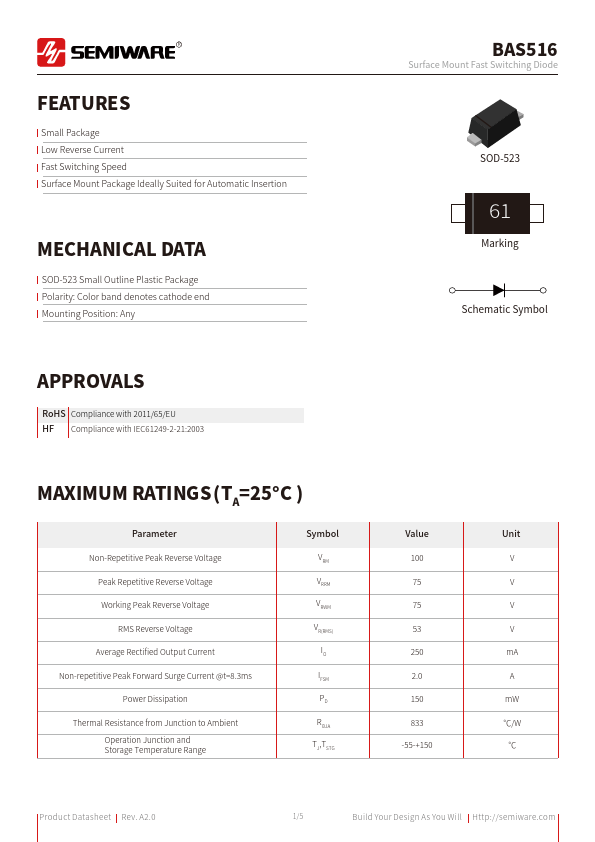

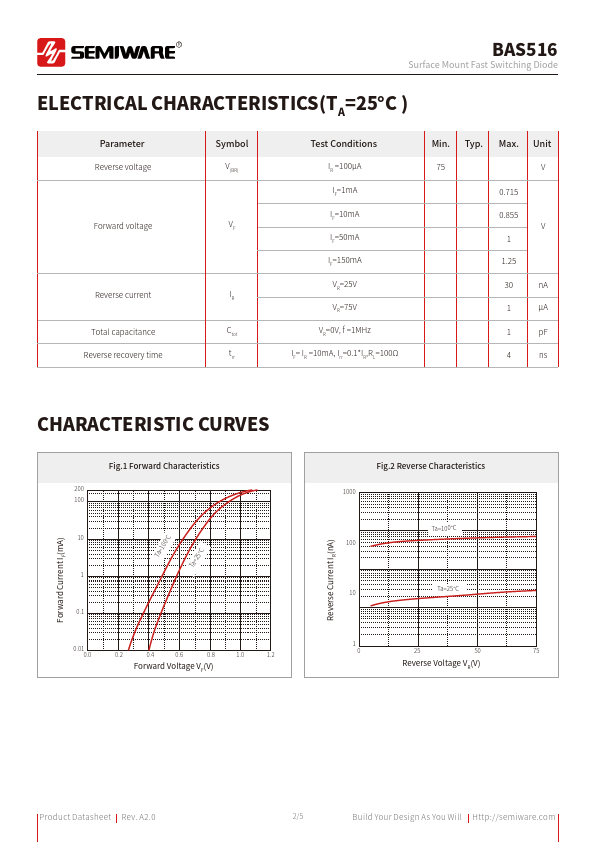

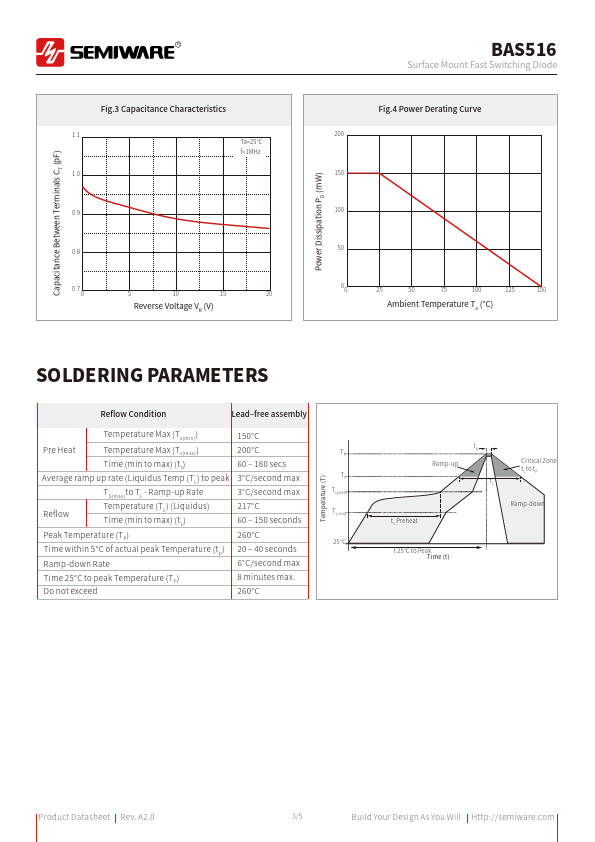

Features Small Package Low Reverse Current Fast Switching Speed Surface Mount Package Ideally Suited for Automatic Insertion MECHANICAL DATA SOD-523 Small Outline Plastic Package Polarity: Color band denotes cathode end Mounting Position: Any APPROVALS Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003 MAXIMUM RATINGS (TA=25°C ) Parameter Non-Repetitive Peak Reverse Voltage Peak Repetitive Reverse Voltage Working Peak Reverse Voltage RMS Reverse Voltage Average Rectified Output Current Non-repetitive Peak Forward Surge Current @t=8.3ms Power Dissipation Thermal Resistance from Junction to Ambient Operation Junction and Storage Temperature Range Symbol VRM VRRM VRWM VR(RMS) IO IFSM PD RΘJA TJ,TSTG Surface Mount Fast Switching Diode SOD-523 Marking Schematic Symbol Value 100 75 75 53 250 2.0 150 833 -55-+150 Unit V V V V m A A m W ℃/W ℃ Product Datasheet Rev. A2.0 1/5 Build Your Design As You Will Http://semiware. Surface Mount Fast Switching Diode ELECTRICAL CHARACTERISTICS(TA=25°C ) Parameter Reverse voltage Forward...
