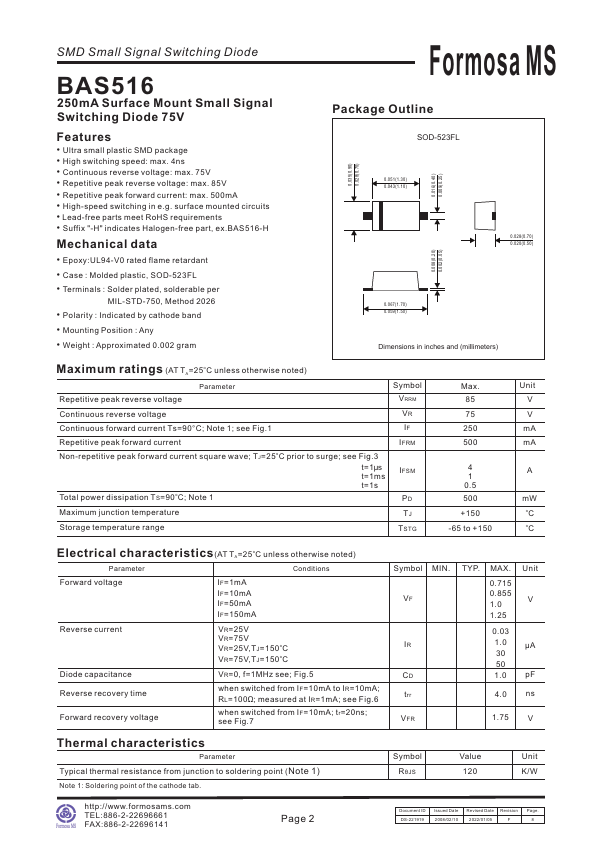

SMD Small Signal Switching Diode 250m A Surface Mount Small Signal Switching Diode 75V Features - Ultra small plastic SMD package - High switching speed: max. 4ns - Continuous reverse voltage: max. 75V - Repetitive peak reverse voltage: max. 85V - Repetitive peak forward current: max. 500m A - High-speed switching in e.g. surface mounted circuits - Lead-free parts meet Ro HS requirements - Suffix "-H" indicates Halogen-free part, ex.BAS516-H Mechanical data - Epoxy:UL94-V0 rated flame retardant - Case : Molded plastic, SOD-523FL - Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 - Polarity : Indicated by cathode band - Mounting Position : Any - Weight : Approximated 0.002 gram 0.035(0.90) 0.028(0.70) 0.008(0.20) 0.002(0.05) 0.016(0.40) 0.009(0.25) Formosa MS Package Outline SOD-523FL 0.051(1.30) 0.043(1.10) 0.028(0.70) 0.020(0.50) 0.067(1.70) 0.059(1.50) Dimensions in inches and (millimeters) Maximum ratings (AT TA=25o C unless otherwise...
