Datasheet Summary
Features plementary to MMBT3906T Small Package
MECHANICAL DATA
SOT-523 small outline plastic package Epoxy UL: 94V-0 Mounting position: Any
APPROVALS
RoHS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003

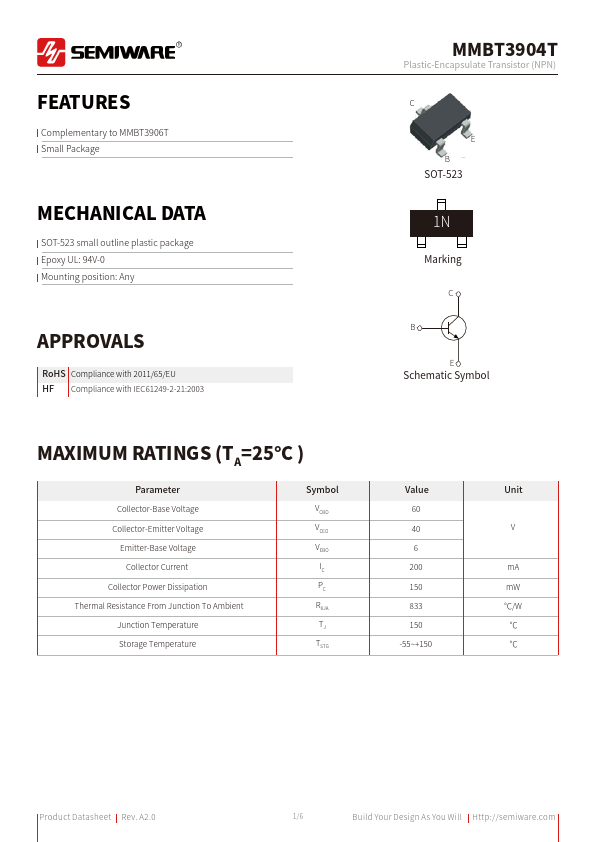

MAXIMUM RATINGS (TA=25°C )
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage
Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient
Junction Temperature Storage Temperature
Symbol VCBO VCEO VEBO IC PC RθJA TJ TSTG
Plastic-Encapsulate Transistor (NPN)
SOT-523
1N
Marking
Schematic Symbol
Value 60 40 6 200 150 833 150
-55~+150
Unit
V mA mW ℃/W ℃ ℃
